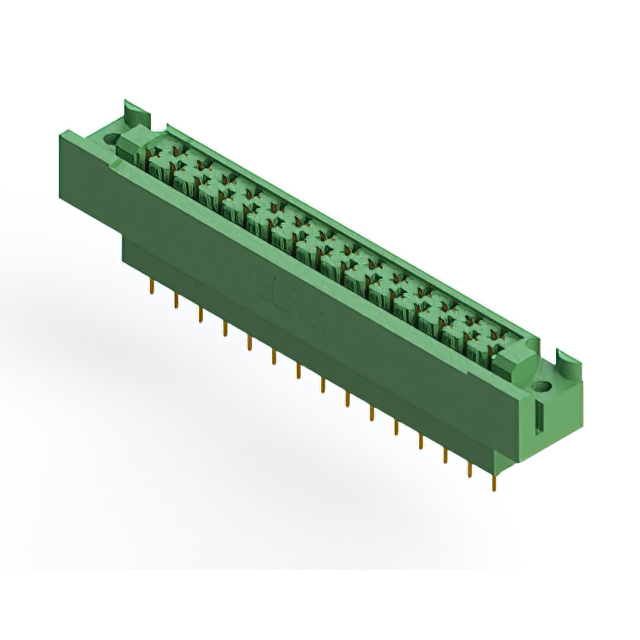

CONN EDGE DL FMALE 29P 0.200 2PC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
438-029-520-122
ActiveEDAC Inc.
CONN EDGE DL FMALE 29P 0.200 2PC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 438-029-520-122 |
|---|---|
| Card Thickness | 0.093 in |
| Card Thickness | 2.36 mm |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 29 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch [x] | 0.2 in |
| Pitch [x] | 5.08 mm |
| Termination | Solder |
| Termination Rows | 2 |
438-029 Series
| Part | Contact Finish | Mounting Type | Number of Rows | Color | Card Thickness | Card Thickness | Card Type | Termination | Termination Rows | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Flange Feature | Gender | Material - Insulation | Contact Material | Pitch [x] | Pitch [x] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Gold | Panel Mount Through Hole | 2 | Green | 0.093 in | 2.36 mm | Non Specified - Dual Edge | Solder | 2 | 125 °C | -65 ░C | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 in | Female | Diallyl Phthalate (DAP) | Copper Alloy | 0.2 in | 5.08 mm | 29 |
EDAC Inc. | Gold | Panel Mount Through Hole | 2 | Green | 0.093 in | 2.36 mm | Non Specified - Dual Edge | Wire Wrap | 2 | 125 °C | -65 ░C | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 in | Female | Diallyl Phthalate (DAP) | Copper Alloy | 0.2 in | 5.08 mm | 29 |
EDAC Inc. | Gold | Panel Mount Through Hole | 2 | Green | 0.093 in | 2.36 mm | Non Specified - Dual Edge | Solder Eyelet(s) | 2 | 125 °C | -65 ░C | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 in | Female | Diallyl Phthalate (DAP) | Copper Alloy | 0.2 in | 5.08 mm | 29 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 25 | $ 22.35 | |
Description
General part information
438-029 Series
29 Position Female Connector Non Specified - Dual Edge Gold 0.200" (5.08mm) Green
