AYF352325A

Obsolete

Panasonic Electric Works

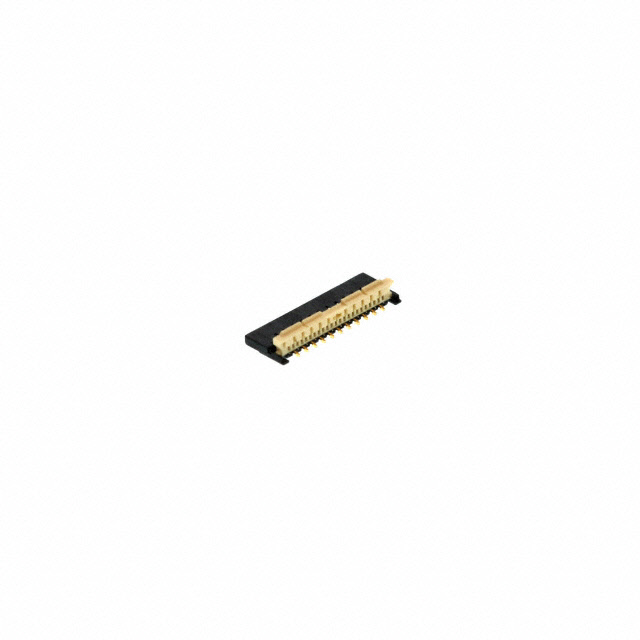

CONN FPC TOP 23POS 0.3MM R/A

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

CONN FPC TOP 23POS 0.3MM R/A

Technical Specifications

Parameters and characteristics for this part

Specification	AYF352325A

Actuator Material	Liquid Crystal Polymer (LCP)
Cable End Type	Tapered
Connector/Contact Type	Contacts, Top
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	200 mA
FFC, FCB Thickness	0.2 mm
Flat Flex Type	FPC
Height Above Board	0.023 in
Height Above Board	0.59 mm
Housing Material	Liquid Crystal Polymer (LCP)
Locking Feature	Flip Lock, Backlock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	23
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.012 in
Pitch [x]	0.3 mm
Termination	Solder
Voltage Rating	50 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Contact Finish	Mounting Type	Flat Flex Type	Mating Cycles	Actuator Material	Material Flammability Rating	Connector/Contact Type	Pitch [x]	Pitch [x]	Contact Material	Termination	Housing Material	Cable End Type	Voltage Rating	Height Above Board	Height Above Board	Number of Positions	FFC, FCB Thickness	Locking Feature
Panasonic Electric Works AYF352325A	85 °C	-55 °C	200 mA	Gold	Surface Mount Right Angle	FPC	20	Liquid Crystal Polymer (LCP)	UL94 V-0	Contacts Top	0.012 in	0.3 mm	Copper Alloy	Solder	Liquid Crystal Polymer (LCP)	Tapered	50 V	0.023 in	0.59 mm	23	0.2 mm	Backlock Flip Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

23 Position FPC Connector Contacts, Top 0.012" (0.30mm) Surface Mount, Right Angle
