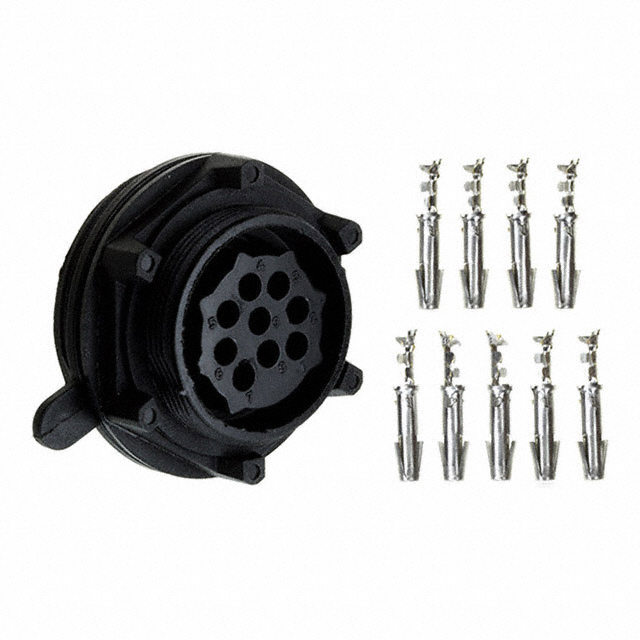

Specification	PX0727/S

Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Tin
Contact Material	Copper Alloy
Current Rating	5 A
Fastening Type	Threaded
Ingress Protection Description	Water Resistant, Waterproof, Dust Tight
Ingress Protection IP Rating	IP69K, IP68
Insert Material	PA, Nylon, Polyamide
Material Flammability Rating	UL94 HB
Mounting Feature	Bulkhead, Rear Side Nut, Flange
Mounting Type	Panel Mount
Number of Positions	9
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-20 °C
Orientation	Keyed
Position Types	Power
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shielding	Unshielded
Termination	Crimp
Voltage Rating	150 VDC
Voltage Rating (Type)	DC

PX0727 Series

Part	Primary Material	Shell Material	Current Rating	Number of Positions	Position Types	Material Flammability Rating	Connector Type	Insert Material	Mounting Feature	Mounting Type	Contact Finish - Mating	Orientation	Color	Voltage Rating	Voltage Rating (Type)	Ingress Protection Description	Ingress Protection IP Rating	Fastening Type	Termination	Shielding	Operating Temperature (Max)	Operating Temperature (Min)	Contact Material
BULGIN LIMITED PX0727/P	Plastic	Glass Filled Nylon Polyamide (PA)	5 A	9	Power	UL94 HB	Male Pins Receptacle	Nylon PA Polyamide	Bulkhead Flange Rear Side Nut	Panel Mount	Tin	Keyed	Black	150 VDC	DC	Dust Tight Water Resistant Waterproof	IP68 IP69K	Threaded	Crimp	Unshielded	70 °C	-20 °C	Copper Alloy
BULGIN LIMITED PX0727/S	Plastic	Glass Filled Nylon Polyamide (PA)	5 A	9	Power	UL94 HB	Female Sockets Receptacle	Nylon PA Polyamide	Bulkhead Flange Rear Side Nut	Panel Mount	Tin	Keyed	Black	150 VDC	DC	Dust Tight Water Resistant Waterproof	IP68 IP69K	Threaded	Crimp	Unshielded	70 °C	-20 °C	Copper Alloy
