929836-03-10

Active

3M (TC)

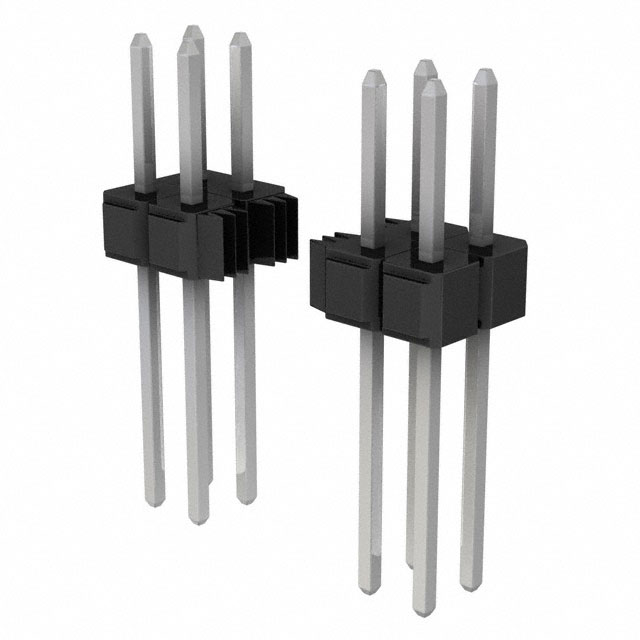

CONN HEADER VERT 20POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Interconnect Catalog

929836-03-10

Active

3M (TC)

CONN HEADER VERT 20POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet Interconnect Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	929836-03-10

Connector Type	Header
Contact Finish - Mating	Tin-Lead
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Length - Mating	5.97 mm
Contact Length - Mating [x]	0.235 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.5 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overall Contact Length	18.92 mm
Overall Contact Length	0.745 "
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

929836 Series

...

Part	Insulation Material	Number of Rows	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Overall Contact Length	Overall Contact Length	Contact Shape	Insulation Color	Number of Positions	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Connector Type	Shrouding	Termination	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Mounting Type	Contact Length - Mating [x]	Contact Length - Mating	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Current Rating (Amps)	Fastening Type	Contact Material	Contact Finish - Mating	Contact Length - Post [x]	Number of Positions
3M (TC) 929836-08-23-RK	Polycyclohexylenedimethylene Terephthalate (PCT)	2	All	5.08 µm	200 µin	0.645 in	16.38 mm	Square	Black	46	UL94 V-0	0.31 in	7.87 mm	Header	Unshrouded	Solder	Male Pin	2.54 mm	0.1 in	-40 °C	105 ░C	0.1 in	2.54 mm	Through Hole	0.235 in	5.97 mm	0.1 in	2.54 mm	Tin	2.5 A	Push-Pull	Copper Alloy
3M (TC) 929836-09-19-RK	Polycyclohexylenedimethylene Terephthalate (PCT)	2	All	5.08 µm	200 µin	0.48 in	12.19 mm	Square	Black	38	UL94 V-0	0.145 in	3.68 mm	Header	Unshrouded	Solder	Male Pin	2.54 mm	0.1 in	-40 °C	105 ░C	0.1 in	2.54 mm	Through Hole	0.235 in	5.97 mm	0.1 in	2.54 mm	Tin	2.5 A	Push-Pull	Copper Alloy
3M (TC) 929836-03-10	Glass Filled Polybutylene Terephthalate (PBT) Polyester	2	All	2.54 çm	100 çin	0.745 "	18.92 mm	Square	Black	20	UL94 V-0			Header	Unshrouded	Solder	Male Pin	2.54 mm	0.1 in	-40 °C	105 ░C	0.1 in	2.54 mm	Through Hole	0.235 in	5.97 mm	0.1 in	2.54 mm		2.5 A	Push-Pull	Copper Alloy	Tin-Lead
3M (TC) 929836-01-12-RK	Polycyclohexylenedimethylene Terephthalate (PCT)	2	All	5.08 µm	200 µin	0.445 "	11.3 mm	Square	Black	24	UL94 V-0		2.79 mm	Header	Unshrouded	Solder	Male Pin	2.54 mm	0.1 in	-40 °C	105 ░C	0.1 in	2.54 mm	Through Hole	0.235 in	5.97 mm	0.1 in	2.54 mm	Tin	2.5 A	Push-Pull	Copper Alloy		0.11 in
3M (TC) 929836-04-24	Glass Filled Polybutylene Terephthalate (PBT) Polyester	2	All	2.54 çm	100 çin	0.845 "	21.46 mm	Square	Black	48	UL94 V-0	0.51 in	12.95 mm	Header	Unshrouded	Solder	Male Pin	2.54 mm	0.1 in	-40 °C	105 ░C	0.1 in	2.54 mm	Through Hole	0.235 in	5.97 mm	0.1 in	2.54 mm		2.5 A	Push-Pull	Copper Alloy	Tin-Lead
3M (TC) 929836-09-16-RK	Polycyclohexylenedimethylene Terephthalate (PCT)	2	All	5.08 µm	200 µin	0.48 in	12.19 mm	Square	Black		UL94 V-0	0.145 in	3.68 mm	Header	Unshrouded	Solder	Male Pin	2.54 mm	0.1 in	-40 °C	105 ░C	0.1 in	2.54 mm	Through Hole	0.235 in	5.97 mm	0.1 in	2.54 mm	Tin	2.5 A	Push-Pull	Copper Alloy
3M (TC) 929836-08-32	Glass Filled Polybutylene Terephthalate (PBT) Polyester	2	All	2.54 çm	100 çin	0.645 in	16.38 mm	Square	Black	64	UL94 V-0	0.31 in	7.87 mm	Header	Unshrouded	Solder	Male Pin	2.54 mm	0.1 in	-40 °C	105 ░C	0.1 in	2.54 mm	Through Hole	0.235 in	5.97 mm	0.1 in	2.54 mm		2.5 A	Push-Pull	Copper Alloy	Tin-Lead
3M (TC) 929836-01-35	Glass Filled Polybutylene Terephthalate (PBT) Polyester	2	All	2.54 çm	100 çin	0.445 "	11.3 mm	Square	Black	70	UL94 V-0		2.79 mm	Header	Unshrouded	Solder	Male Pin	2.54 mm	0.1 in	-40 °C	105 ░C	0.1 in	2.54 mm	Through Hole	0.235 in	5.97 mm	0.1 in	2.54 mm		2.5 A	Push-Pull	Copper Alloy	Tin-Lead	0.11 in
3M (TC) 929836-09-20	Glass Filled Polybutylene Terephthalate (PBT) Polyester	2	All	2.54 çm	100 çin	0.48 in	12.19 mm	Square	Black	40	UL94 V-0	0.145 in	3.68 mm	Header	Unshrouded	Solder	Male Pin	2.54 mm	0.1 in	-40 °C	105 ░C	0.1 in	2.54 mm	Through Hole	0.235 in	5.97 mm	0.1 in	2.54 mm		2.5 A	Push-Pull	Copper Alloy	Tin-Lead
3M (TC) 929836-09-08-RK	Polycyclohexylenedimethylene Terephthalate (PCT)	2	All	5.08 µm	200 µin	0.48 in	12.19 mm	Square	Black		UL94 V-0	0.145 in	3.68 mm	Header	Unshrouded	Solder	Male Pin	2.54 mm	0.1 in	-40 °C	105 ░C	0.1 in	2.54 mm	Through Hole	0.235 in	5.97 mm	0.1 in	2.54 mm	Tin	2.5 A	Push-Pull	Copper Alloy			16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.14
		10	$ 1.86
		100	$ 1.66
		500	$ 1.39
		1000	$ 1.19
		5000	$ 1.05

Description

General part information

929836 Series

Connector Header Through Hole 20 position 0.100" (2.54mm)
