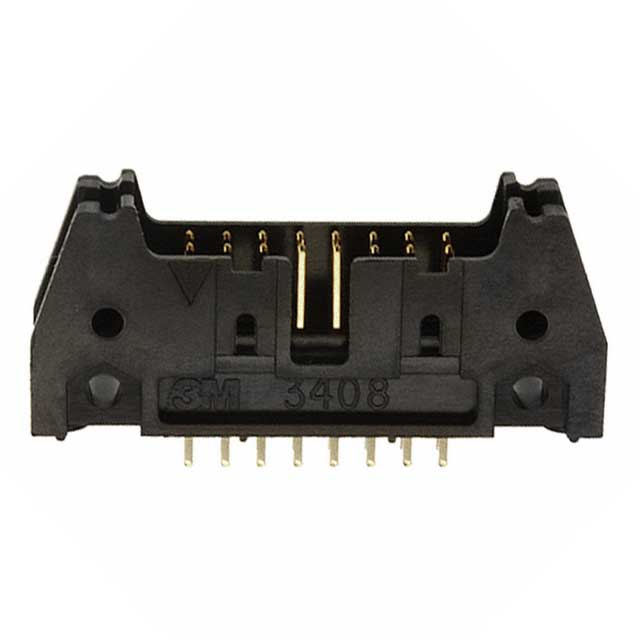

N3408-6002RB

Active

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 16 CONTACTS, THROUGH HOLE STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Catalog Datasheet +2

N3408-6002RB

Active

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 16 CONTACTS, THROUGH HOLE STRAIGHT

Deep-Dive with AI

DocumentsInterconnect Catalog Datasheet +2

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.90
		10	$ 2.98
		100	$ 2.30
		500	$ 1.94
		1000	$ 1.81
		5000	$ 1.56

Description

General part information

N3408 Series

The 3000 series Four-wall Header with copper alloy contacts and a glass-filled polycyclohexylenedimethylene terephthalate insulator. The high temperature insulator suitable for no lead soldering operations. It is suitable for reflow soldering using paste in hole techniques.

Documents

Technical documentation and resources

Specification	N3408-6002RB	N3408 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Mating	6.1 mm	6.1 mm
Contact Length - Mating [x]	0.24 in	0.24 in
Contact Length - Post	2.84 mm	2.84 - 3.94 mm
Contact Length - Post	0.112 in	0.112 - 0.155 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.75 A	1.75 A
Fastening Type	Push-Pull	Latch Lock/Eject Hooks, Long, Latch Lock/Eject Hooks, Short, Push-Pull
Insulation Color	Black	Black
Insulation Height	17.27 mm	7.87 - 17.27 mm
Insulation Height	0.68 in	0.31 - 0.68 in
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole, Right Angle, Through Hole
Number of Positions	16	16
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Contact Length	0.652 in	0.652 - 0.695 in
Overall Contact Length	16.56 mm	16.56 - 17.65 mm
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 3 Wall, Shrouded - 4 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

Part

Contact Finish Thickness - Mating

Connector Type

Number of Positions Loaded

Insulation Material

Contact Finish - Post

Contact Shape

Operating Temperature [Max]

Operating Temperature [Min]

Termination

Contact Finish - Mating

Mounting Type

Contact Finish Thickness - Post

Pitch - Mating

Contact Material

Insulation Height

Material Flammability Rating

Insulation Color

Contact Length - Mating

Contact Length - Mating [x]

Fastening Type

Style

Current Rating (Amps)

Row Spacing - Mating [x]

Contact Length - Post

Contact Type

Number of Rows

Number of Positions

Shrouding

Overall Contact Length

N3408-1302RB

30 Áin

0.76 Ám

Header

All

Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester

Tin

Square

105 ░C

-55 °C

Solder

Gold

Through Hole, Right Angle

200 µin

5.08 µm

0.1 in

2.54 mm

Copper Alloy

0.31 in

7.87 mm

UL94 V-0

Black

6.1 mm

0.24 in

Latch Lock/Eject Hooks, Long

Board to Board, Cable

1.75 A

2.54 mm

0.1 in

2.84 mm

0.112 in

Male Pin

Shrouded - 3 Wall

N3408-6302RB

30 Áin

0.76 Ám

Header

All

Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester

Tin

Square

105 ░C

-55 °C

Solder

Gold

Through Hole

200 µin

5.08 µm

0.1 in

2.54 mm

Copper Alloy

0.68 in

17.27 mm

UL94 V-0

Black

6.1 mm

0.24 in

Latch Lock/Eject Hooks, Long

Board to Board, Cable

1.75 A

2.54 mm

0.1 in

2.84 mm

0.112 in

Male Pin

Shrouded - 4 Wall

0.652 in

16.56 mm

N3408-2302RB

30 Áin

0.76 Ám

Header

All

Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester

Tin

Square

105 ░C

-55 °C

Solder

Gold

Through Hole

200 µin

5.08 µm

0.1 in

2.54 mm

Copper Alloy

0.68 in

17.27 mm

UL94 V-0

Black

6.1 mm

0.24 in

Latch Lock/Eject Hooks, Long

Board to Board, Cable

1.75 A

2.54 mm

0.1 in

2.84 mm

0.112 in

Male Pin

Shrouded - 3 Wall

0.652 in

16.56 mm

N3408-6502

30 Áin

0.76 Ám

Header

All

Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester

Tin-Lead

Square

105 ░C

-55 °C

Solder

Gold

Through Hole

200 µin

5.08 µm

0.1 in

2.54 mm

Copper Alloy

0.68 in

17.27 mm

UL94 V-0

Black

6.1 mm

0.24 in

Latch Lock/Eject Hooks, Short

Board to Board, Cable

1.75 A

2.54 mm

0.1 in

2.84 mm

0.112 in

Male Pin

Shrouded - 4 Wall

0.652 in

16.56 mm

N3408-1202RB

30 Áin

0.76 Ám

Header

All

Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester

Tin

Square

105 ░C

-55 °C

Solder

Gold

Through Hole, Right Angle

200 µin

5.08 µm

0.1 in

2.54 mm

Copper Alloy

0.31 in

7.87 mm

UL94 V-0

Black

6.1 mm

0.24 in

Latch Lock/Eject Hooks, Short

Board to Board, Cable

1.75 A

2.54 mm

0.1 in

2.84 mm

0.112 in

Male Pin

Shrouded - 3 Wall

N3408-2203RB

30 Áin

0.76 Ám

Header

All

Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester

Tin

Square

105 ░C

-55 °C

Solder

Gold

Through Hole

200 µin

5.08 µm

0.1 in

2.54 mm

Copper Alloy

0.68 in

17.27 mm

UL94 V-0

Black

6.1 mm

0.24 in

Latch Lock/Eject Hooks, Short

Board to Board, Cable

1.75 A

2.54 mm

0.1 in

3.94 mm

0.155 "

Male Pin

Shrouded - 3 Wall

0.695 in

17.65 mm

N3408-6002RB

30 Áin

0.76 Ám

Header

All

Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester

Tin

Square

105 ░C

-55 °C

Solder

Gold

Through Hole

200 µin

5.08 µm

0.1 in

2.54 mm

Copper Alloy

0.68 in

17.27 mm

UL94 V-0

Black

6.1 mm

0.24 in

Push-Pull

Board to Board, Cable

1.75 A

2.54 mm

0.1 in

2.84 mm

0.112 in

Male Pin

Shrouded - 4 Wall

0.652 in

16.56 mm

N3408-1003RB

30 Áin

0.76 Ám

Header

All

Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester

Tin

Square

105 ░C

-55 °C

Solder

Gold

Through Hole, Right Angle

200 µin

5.08 µm

0.1 in

2.54 mm

Copper Alloy

0.31 in

7.87 mm

UL94 V-0

Black

6.1 mm

0.24 in

Push-Pull

Board to Board, Cable

1.75 A

2.54 mm

0.1 in

3.94 mm

0.155 "

Male Pin

Shrouded - 3 Wall

N3408-5003RB

30 Áin

0.76 Ám

Header

All

Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester

Tin

Square

105 ░C

-55 °C

Solder

Gold

Through Hole, Right Angle

200 µin

5.08 µm

0.1 in

2.54 mm

Copper Alloy

0.34 in

8.64 mm

UL94 V-0

Black

6.1 mm

0.24 in

Push-Pull

Board to Board, Cable

1.75 A

2.54 mm

0.1 in

3.94 mm

0.155 "

Male Pin

Shrouded - 4 Wall

N3408-6303RB

30 Áin

0.76 Ám

Header

All

Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester

Tin

Square

105 ░C

-55 °C

Solder

Gold

Through Hole

200 µin

5.08 µm

0.1 in

2.54 mm

Copper Alloy

0.68 in

17.27 mm

UL94 V-0

Black

6.1 mm

0.24 in

Latch Lock/Eject Hooks, Long

Board to Board, Cable

1.75 A

2.54 mm

0.1 in

3.94 mm

0.155 "

Male Pin

Shrouded - 4 Wall

0.695 in

17.65 mm

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Number of Positions Loaded	Insulation Material	Contact Finish - Post	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Contact Finish - Mating	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Contact Material	Insulation Height	Insulation Height	Material Flammability Rating	Insulation Color	Contact Length - Mating	Contact Length - Mating [x]	Fastening Type	Style	Current Rating (Amps)	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post	Contact Length - Post	Contact Type	Number of Rows	Number of Positions	Shrouding	Overall Contact Length	Overall Contact Length
3M N3408-1302RB	30 Áin	0.76 Ám	Header	All	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Tin	Square	105 ░C	-55 °C	Solder	Gold	Through Hole, Right Angle	200 µin	5.08 µm	0.1 in	2.54 mm	Copper Alloy	0.31 in	7.87 mm	UL94 V-0	Black	6.1 mm	0.24 in	Latch Lock/Eject Hooks, Long	Board to Board, Cable	1.75 A	2.54 mm	0.1 in	2.84 mm	0.112 in	Male Pin	2	16	Shrouded - 3 Wall
3M N3408-6302RB	30 Áin	0.76 Ám	Header	All	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Tin	Square	105 ░C	-55 °C	Solder	Gold	Through Hole	200 µin	5.08 µm	0.1 in	2.54 mm	Copper Alloy	0.68 in	17.27 mm	UL94 V-0	Black	6.1 mm	0.24 in	Latch Lock/Eject Hooks, Long	Board to Board, Cable	1.75 A	2.54 mm	0.1 in	2.84 mm	0.112 in	Male Pin	2	16	Shrouded - 4 Wall	0.652 in	16.56 mm
3M N3408-2302RB	30 Áin	0.76 Ám	Header	All	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Tin	Square	105 ░C	-55 °C	Solder	Gold	Through Hole	200 µin	5.08 µm	0.1 in	2.54 mm	Copper Alloy	0.68 in	17.27 mm	UL94 V-0	Black	6.1 mm	0.24 in	Latch Lock/Eject Hooks, Long	Board to Board, Cable	1.75 A	2.54 mm	0.1 in	2.84 mm	0.112 in	Male Pin	2	16	Shrouded - 3 Wall	0.652 in	16.56 mm
3M N3408-6502	30 Áin	0.76 Ám	Header	All	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Tin-Lead	Square	105 ░C	-55 °C	Solder	Gold	Through Hole	200 µin	5.08 µm	0.1 in	2.54 mm	Copper Alloy	0.68 in	17.27 mm	UL94 V-0	Black	6.1 mm	0.24 in	Latch Lock/Eject Hooks, Short	Board to Board, Cable	1.75 A	2.54 mm	0.1 in	2.84 mm	0.112 in	Male Pin	2	16	Shrouded - 4 Wall	0.652 in	16.56 mm
3M N3408-1202RB	30 Áin	0.76 Ám	Header	All	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Tin	Square	105 ░C	-55 °C	Solder	Gold	Through Hole, Right Angle	200 µin	5.08 µm	0.1 in	2.54 mm	Copper Alloy	0.31 in	7.87 mm	UL94 V-0	Black	6.1 mm	0.24 in	Latch Lock/Eject Hooks, Short	Board to Board, Cable	1.75 A	2.54 mm	0.1 in	2.84 mm	0.112 in	Male Pin	2	16	Shrouded - 3 Wall
3M N3408-2203RB	30 Áin	0.76 Ám	Header	All	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Tin	Square	105 ░C	-55 °C	Solder	Gold	Through Hole	200 µin	5.08 µm	0.1 in	2.54 mm	Copper Alloy	0.68 in	17.27 mm	UL94 V-0	Black	6.1 mm	0.24 in	Latch Lock/Eject Hooks, Short	Board to Board, Cable	1.75 A	2.54 mm	0.1 in	3.94 mm	0.155 "	Male Pin	2	16	Shrouded - 3 Wall	0.695 in	17.65 mm
3M N3408-6002RB	30 Áin	0.76 Ám	Header	All	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Tin	Square	105 ░C	-55 °C	Solder	Gold	Through Hole	200 µin	5.08 µm	0.1 in	2.54 mm	Copper Alloy	0.68 in	17.27 mm	UL94 V-0	Black	6.1 mm	0.24 in	Push-Pull	Board to Board, Cable	1.75 A	2.54 mm	0.1 in	2.84 mm	0.112 in	Male Pin	2	16	Shrouded - 4 Wall	0.652 in	16.56 mm
3M N3408-1003RB	30 Áin	0.76 Ám	Header	All	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Tin	Square	105 ░C	-55 °C	Solder	Gold	Through Hole, Right Angle	200 µin	5.08 µm	0.1 in	2.54 mm	Copper Alloy	0.31 in	7.87 mm	UL94 V-0	Black	6.1 mm	0.24 in	Push-Pull	Board to Board, Cable	1.75 A	2.54 mm	0.1 in	3.94 mm	0.155 "	Male Pin	2	16	Shrouded - 3 Wall
3M N3408-5003RB	30 Áin	0.76 Ám	Header	All	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Tin	Square	105 ░C	-55 °C	Solder	Gold	Through Hole, Right Angle	200 µin	5.08 µm	0.1 in	2.54 mm	Copper Alloy	0.34 in	8.64 mm	UL94 V-0	Black	6.1 mm	0.24 in	Push-Pull	Board to Board, Cable	1.75 A	2.54 mm	0.1 in	3.94 mm	0.155 "	Male Pin	2	16	Shrouded - 4 Wall
3M N3408-6303RB	30 Áin	0.76 Ám	Header	All	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Tin	Square	105 ░C	-55 °C	Solder	Gold	Through Hole	200 µin	5.08 µm	0.1 in	2.54 mm	Copper Alloy	0.68 in	17.27 mm	UL94 V-0	Black	6.1 mm	0.24 in	Latch Lock/Eject Hooks, Long	Board to Board, Cable	1.75 A	2.54 mm	0.1 in	3.94 mm	0.155 "	Male Pin	2	16	Shrouded - 4 Wall	0.695 in	17.65 mm
