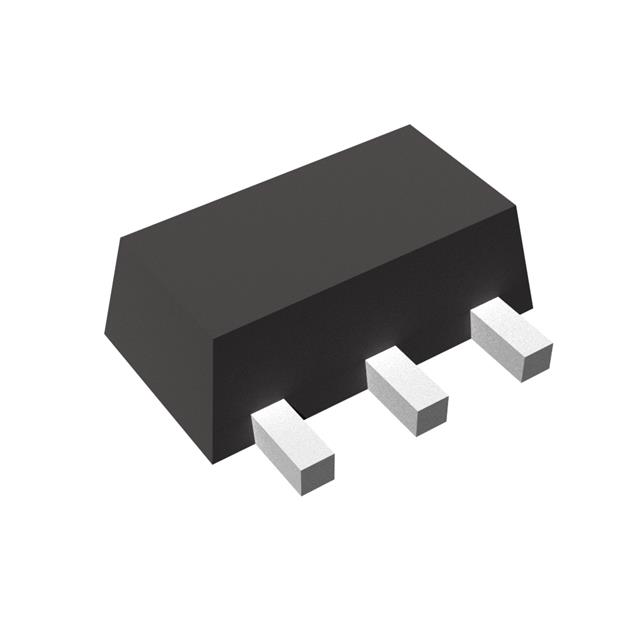

NJU7201U55-TE1
ActiveNisshinbo Micro Devices Inc
IC REG LINEAR 5.5V 100MA SOT89-3
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NJU7201U55-TE1
ActiveNisshinbo Micro Devices Inc
IC REG LINEAR 5.5V 100MA SOT89-3
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NJU7201U55-TE1 |
|---|---|
| Current - Output | 100 mA |
| Current - Quiescent (Iq) | 30 µA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -25 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | TO-243AA |
| Supplier Device Package | SOT-89-3 |
| Voltage - Input (Max) [Max] | 12 V |
| Voltage - Output (Min/Fixed) | 5.5 V |
| Voltage Dropout (Max) [Max] | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.09 | |
| 10 | $ 0.79 | |||
| 25 | $ 0.71 | |||
| 100 | $ 0.63 | |||
| 250 | $ 0.59 | |||
| 500 | $ 0.56 | |||
| 1000 | $ 0.54 | |||
| Digi-Reel® | 1 | $ 1.09 | ||
| 10 | $ 0.79 | |||
| 25 | $ 0.71 | |||
| 100 | $ 0.63 | |||
| 250 | $ 0.59 | |||
| 500 | $ 0.56 | |||
| 1000 | $ 0.54 | |||
| Tape & Reel (TR) | 2000 | $ 0.53 | ||
| 4000 | $ 0.51 | |||
| 6000 | $ 0.51 | |||
| 10000 | $ 0.50 | |||
| 14000 | $ 0.50 | |||
| 20000 | $ 0.49 | |||
Description
General part information
NJU7201 Series
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-89-3
