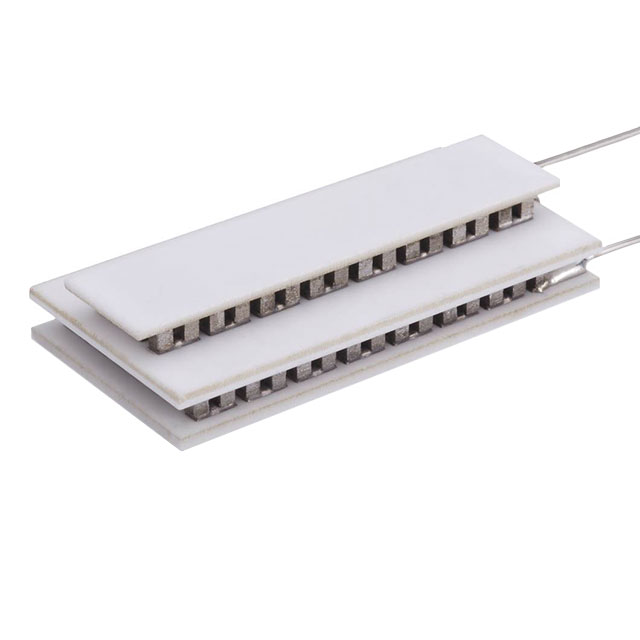

16491-304

Active

Laird Thermal Systems, Inc.

PELTIER MS2,94,10,10,13,13,22 W8

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

PELTIER MS2,94,10,10,13,13,22 W8

Technical Specifications

Parameters and characteristics commom to parts in this series

PELTIR MS2,094,10,10,13,13,00,W8

Part	Operating Temperature	Current - Max [Max]	Voltage - Max [Max]	Qmax @ Th	Features	Delta Tmax @ Th	Size / Dimension [x]	Size / Dimension [y]	Number of Stages	Height [z]
Laird Thermal Systems, Inc. 16491-303	80 °C	2.9 A	7.5 V	7.6 W	Lead Wires, Non-Sealed	25 °C, 85 °C	29.7 mm	14.86 mm	2	5.84 mm
Laird Thermal Systems, Inc. 16491-302	80 °C	2.9 A	7.5 V	7.6 W	Lead Wires, Non-Sealed	25 °C, 85 °C	29.7 mm	14.86 mm	2	5.84 mm
Laird Thermal Systems, Inc. 16491-304	80 °C	2.9 A	7.5 V	7.6 W	Lead Wires, Non-Sealed	25 °C, 85 °C	29.7 mm	14.86 mm	2	6.04 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
