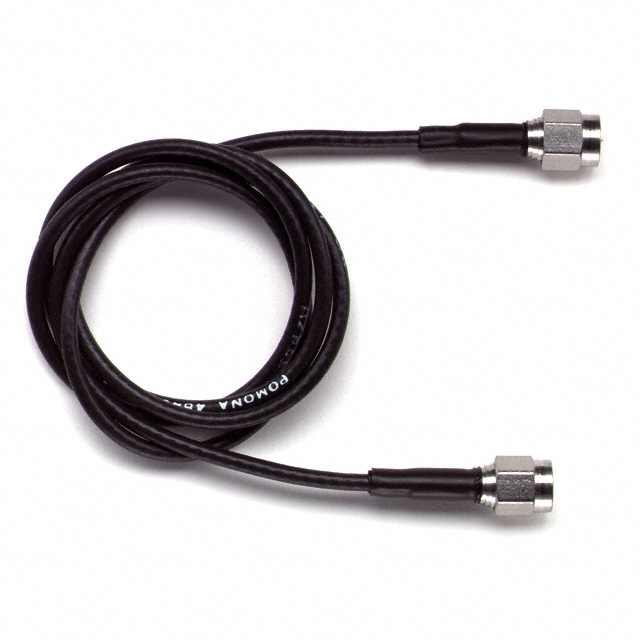

4846-X-12

Active

Pomona Electronics

CBL ASSY SMA PLUG TO PLUG 12"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

4846-X-12

Active

Pomona Electronics

CBL ASSY SMA PLUG TO PLUG 12"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4846-X-12

1st Connector	SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMA Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-142B DS
Color	Brown
Features	Shielded
Length	12 "
Length	304.8 mm
Operating Temperature	200 °C
Overall Impedance	50 Ohms
Style	SMA to SMA

4846 Series

Part	Overall Impedance	Operating Temperature	2nd Connector	1st Connector Mounting Type	Color	1st Connector	Features	1st Contact Gender	Style	Cable Impedance	2nd Connector Mounting Type	Cable Type	Length	Length	Length	2nd Contact Gender	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]
Pomona Electronics 4846-BB-60	50 Ohms	200 °C	SMA Plug	Free Hanging (In-Line)	Brown	SMA Plug	Shielded	Male	SMA to SMA	50 Ohms	Free Hanging (In-Line)	RG-316	5 ft	1.5 m	5 '	Male
Pomona Electronics 4846-BB-48	50 Ohms	200 °C	SMA Plug	Free Hanging (In-Line)	Brown	SMA Plug	Shielded	Male	SMA to SMA	50 Ohms	Free Hanging (In-Line)	RG-316	4 ft	1200 mm	48 in	Male
Pomona Electronics 4846-C-36	50 Ohms		SMA Plug	Free Hanging (In-Line)	Black	SMA Plug	Shielded	Male	SMA to SMA	50 Ohms	Free Hanging (In-Line)	RG-58C		91.44 cm	36 in	Male	-65 ░C	165 °C	4 GHz
Pomona Electronics 4846-C-60	50 Ohms		SMA Plug	Free Hanging (In-Line)	Black	SMA Plug	Shielded	Male	SMA to SMA	50 Ohms	Free Hanging (In-Line)	RG-58C	5 ft	1.5 m	5 '	Male	-65 ░C	165 °C	4 GHz
Pomona Electronics 4846-UU-60	50 Ohms		SMA Plug	Free Hanging (In-Line)	Copper	SMA Plug	Shielded	Male	SMA to SMA	50 Ohms	Free Hanging (In-Line)		5 ft	1.5 m	5 '	Male	-65 ░C	165 °C	4 GHz
Pomona Electronics 4846-BB-24	50 Ohms	200 °C	SMA Plug	Free Hanging (In-Line)	Brown	SMA Plug	Shielded	Male	SMA to SMA	50 Ohms	Free Hanging (In-Line)	RG-316		609.6 mm	24 "	Male
Pomona Electronics 4846-X-12	50 Ohms	200 °C	SMA Plug	Free Hanging (In-Line)	Brown	SMA Plug	Shielded	Male	SMA to SMA	50 Ohms	Free Hanging (In-Line)	RG-142B DS		304.8 mm	12 "	Male
Pomona Electronics 4846-UU-24	50 Ohms		SMA Plug	Free Hanging (In-Line)	Copper	SMA Plug	Shielded	Male	SMA to SMA	50 Ohms	Free Hanging (In-Line)			609.6 mm	24 "	Male	-65 ░C	165 °C	4 GHz
Pomona Electronics 4846-C-48	50 Ohms		SMA Plug	Free Hanging (In-Line)	Black	SMA Plug	Shielded	Male	SMA to SMA	50 Ohms	Free Hanging (In-Line)	RG-58C	4 ft	1200 mm	48 in	Male	-65 ░C	165 °C	4 GHz
Pomona Electronics 4846-UU-12	50 Ohms		SMA Plug	Free Hanging (In-Line)	Copper	SMA Plug	Shielded	Male	SMA to SMA	50 Ohms	Free Hanging (In-Line)			304.8 mm	12 "	Male	-65 ░C	165 °C	4 GHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 89.19

Description

General part information

4846 Series

Cable Assembly Coaxial SMA to SMA RG-142B DS 12.00" (304.80mm)
