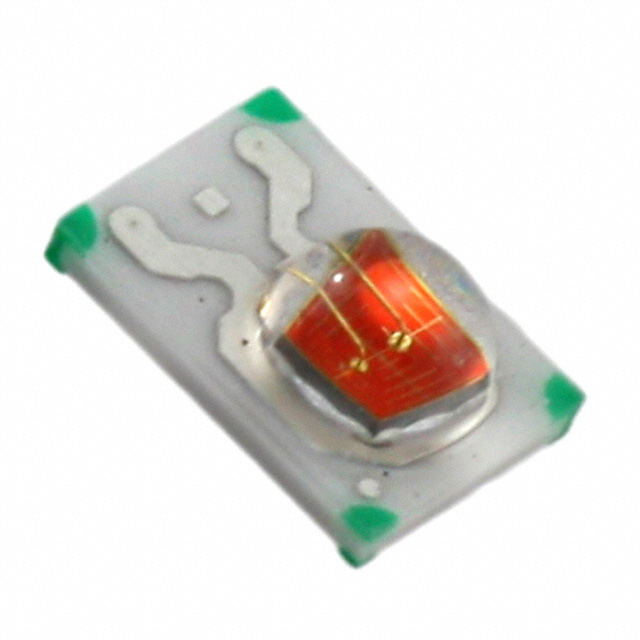

ELSH-Q61F1-0LPNM-JF3F8
ActiveEverlight Electronics Co Ltd
LED SHUEN RED 730NM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ELSH-Q61F1-0LPNM-JF3F8
ActiveEverlight Electronics Co Ltd
LED SHUEN RED 730NM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ELSH-Q61F1-0LPNM-JF3F8 |
|---|---|
| Color | Red |
| Current - Max [Max] | 600 mA |
| Current - Test | 350 mA |
| Luminous Flux @ Current/Temperature | 150 mW |
| Luminous Flux @ Current/Temperature [Max] | 175 mW |
| Luminous Flux @ Current/Temperature [Min] | 125 mW |
| Mounting Type | Surface Mount |
| Package / Case | 3246 Metric, 1218 |
| Size / Dimension [x] | 3.05 mm |
| Size / Dimension [x] | 0.12 in |
| Size / Dimension [y] | 0.177 " |
| Size / Dimension [y] | 4.5 mm |
| Supplier Device Package | SMD |
| Thermal Resistance of Package [custom] | 12 °C/W |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.35 V |
| Wavelength | 730 nm |
| Wavelength [Max] | 745 nm |
| Wavelength [Min] | 715 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.25 | |
| 10 | $ 3.92 | |||
| 100 | $ 3.13 | |||
| Digi-Reel® | 1 | $ 5.25 | ||
| 10 | $ 3.92 | |||
| 100 | $ 3.13 | |||
| Tape & Reel (TR) | 400 | $ 2.82 | ||
| 800 | $ 2.71 | |||
| 1200 | $ 2.65 | |||
| 2000 | $ 2.58 | |||
| 2800 | $ 2.54 | |||
| 4000 | $ 2.50 | |||
Description
General part information
ELSH-Q61 Series
LED Lighting Color SHUEN Red 730nm (715nm ~ 745nm) 1218 (3246 Metric)
