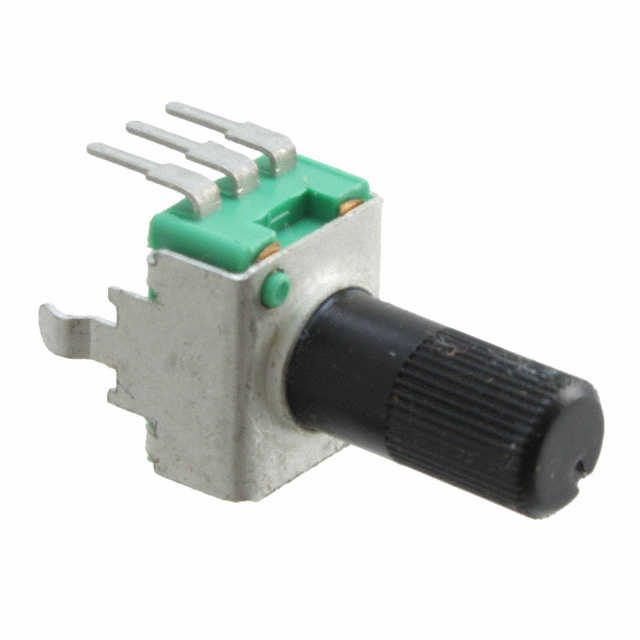

P090S-14T20BR10K

Active

TT Electronics/BI

POT 10K OHM 1/32W PLASTIC LINEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

P090S-14T20BR10K

Active

TT Electronics/BI

POT 10K OHM 1/32W PLASTIC LINEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	P090S-14T20BR10K	P090S Series

Actuator Diameter [diameter]	0.236 in	0.157 - 0.236 in
Actuator Diameter [diameter]	6 mm	4 - 6 mm
Actuator Length	-	0.984 in
Actuator Length	-	25 mm
Actuator Length [z]	20 mm	20 mm
Actuator Length [z]	0.787 in	0.787 in
Actuator Type	Knurled	Knurled, Flatted
Adjustment Type	Top Adjustment	Top Adjustment
Built in Switch	Detent	Detent
Built in Switch	-	False
Mounting Type	Through Hole	Through Hole
Number of Gangs	1	1
Number of Turns	1	1
Power (Watts)	0.03125 W	0.03125 W
Power (Watts)	30 mW	30 mW
Resistance (Ohms)	10k	10k
Resistance (Ohms)	-	20 - 50 kOhms
Resistive Material	Conductive Plastic	Conductive Plastic
Rotation	280 °	280 °
Size - Body [x]	11 mm	11 mm
Size - Body [x]	0.433 "	0.433 "
Size - Body [y]	9.8 mm	9.8 mm
Size - Body [y]	0.386 "	0.386 "
Taper	Linear	Linear, Reverse Logarithmic, Logarithmic
Termination Style	Board Locks, PC Pins	Board Locks, PC Pins
Tolerance	20 %	20 %

P090S Series

POT 10K OHM 1/32W PLASTIC LINEAR

Part	Number of Turns	Mounting Type	Actuator Length [z]	Actuator Length [z]	Resistance (Ohms)	Actuator Type	Number of Gangs	Size - Body [x]	Size - Body [y]	Size - Body [x]	Size - Body [y]	Tolerance	Power (Watts)	Power (Watts)	Adjustment Type	Termination Style	Taper	Rotation	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Resistive Material	Actuator Length [x]	Actuator Length [x]	Resistance (Ohms)	Built in Switch
TT Electronics/BI P090S-04T20BR10K	1	Through Hole	20 mm	0.787 in	10k	Knurled	1	11 mm	9.8 mm	0.433 "	0.386 "	20 %	0.03125 W	30 mW	Top Adjustment	Board Locks, PC Pins	Linear	280 °	0.236 in	6 mm	Conductive Plastic
TT Electronics/BI P090S-04K25BR10K	1	Through Hole			10k	Knurled	1	11 mm	9.8 mm	0.433 "	0.386 "	20 %	0.03125 W	30 mW	Top Adjustment	Board Locks, PC Pins	Linear	280 °	0.157 in	4 mm	Conductive Plastic	0.984 in	25 mm
TT Electronics/BI P090S-04T25BR10K	1	Through Hole			10k	Knurled	1	11 mm	9.8 mm	0.433 "	0.386 "	20 %	0.03125 W	30 mW	Top Adjustment	Board Locks, PC Pins	Linear	280 °	0.236 in	6 mm	Conductive Plastic	0.984 in	25 mm
TT Electronics/BI P090S-04T20BR50K	1	Through Hole	20 mm	0.787 in		Knurled	1	11 mm	9.8 mm	0.433 "	0.386 "	20 %	0.03125 W	30 mW	Top Adjustment	Board Locks, PC Pins	Linear	280 °	0.236 in	6 mm	Conductive Plastic			50 kOhms
TT Electronics/BI P090S-04T20CR10K	1	Through Hole	20 mm	0.787 in	10k	Knurled	1	11 mm	9.8 mm	0.433 "	0.386 "	20 %	0.03125 W	30 mW	Top Adjustment	Board Locks, PC Pins	Reverse Logarithmic	280 °	0.236 in	6 mm	Conductive Plastic
TT Electronics/BI P090S-14F20BR10K	1	Through Hole	20 mm	0.787 in	10k	Flatted	1	11 mm	9.8 mm	0.433 "	0.386 "	20 %	0.03125 W	30 mW	Top Adjustment	Board Locks, PC Pins	Linear	280 °	0.236 in	6 mm	Conductive Plastic				Detent
TT Electronics/BI P090S-04T20AR50K	1	Through Hole	20 mm	0.787 in		Knurled	1	11 mm	9.8 mm	0.433 "	0.386 "	20 %	0.03125 W	30 mW	Top Adjustment	Board Locks, PC Pins	Logarithmic	280 °	0.236 in	6 mm	Conductive Plastic			50 kOhms
TT Electronics/BI P090S-04F30BR20K	1	Through Hole	20 mm	0.787 in		Flatted	1	11 mm	9.8 mm	0.433 "	0.386 "	20 %	0.03125 W	30 mW	Top Adjustment	Board Locks, PC Pins	Linear	280 °	0.236 in	6 mm	Conductive Plastic			20 kOhms
TT Electronics/BI P090S-14T20BR10K	1	Through Hole	20 mm	0.787 in	10k	Knurled	1	11 mm	9.8 mm	0.433 "	0.386 "	20 %	0.03125 W	30 mW	Top Adjustment	Board Locks, PC Pins	Linear	280 °	0.236 in	6 mm	Conductive Plastic				Detent
TT Electronics/BI P090S-02T20AR10K	1	Through Hole	20 mm	0.787 in	10k	Knurled	1	11 mm	9.8 mm	0.433 "	0.386 "	20 %	0.03125 W	30 mW	Top Adjustment	Board Locks, PC Pins	Logarithmic	280 °	0.236 in	6 mm	Conductive Plastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.19
		10	$ 1.05
		25	$ 0.94
		40	$ 0.91
		80	$ 0.87
		230	$ 0.83
		440	$ 0.69
		1440	$ 0.65
		5760	$ 0.64

Description

General part information

P090S Series

10k Ohm 1 Gang Linear Through Hole Potentiometer 1.0 Turns Conductive Plastic 0.03W, 1/32W PC Pins, Board Locks
