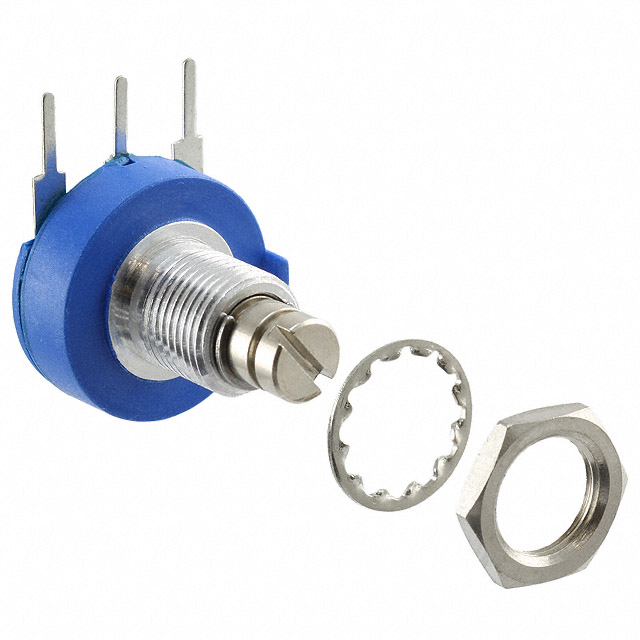

3852C-202-104AL

Active

Bourns Inc.

POT 100K OHM 2W CERMET LINEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3852C-202-104AL

Active

Bourns Inc.

POT 100K OHM 2W CERMET LINEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3852C-202-104AL

Actuator Diameter [diameter]	0.125 in
Actuator Diameter [diameter]	3.18 mm
Actuator Length [x]	15.88 mm
Actuator Length [x]	0.625 in
Actuator Type	Slotted
Adjustment Type	User Defined
Built in Switch	False
Bushing Thread	1/4-32
Number of Gangs	1
Number of Turns	1
Power (Watts)	2 W
Resistance (Ohms)	100 kOhms
Resistive Material	Cermet
Rotation	280 °
Size - Body [diameter]	0.75 in
Size - Body [diameter]	19.05 mm
Taper	Linear
Temperature Coefficient	150 ppm/°C
Termination Style	Solder Lug
Tolerance	10 %

3852C Series

Part	Resistance (Ohms)	Temperature Coefficient	Power (Watts)	Number of Gangs	Termination Style	Taper	Actuator Length [z]	Actuator Length [z]	Rotation	Tolerance	Adjustment Type	Size - Body [diameter]	Size - Body [diameter]	Bushing Thread	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Actuator Type	Number of Turns	Resistive Material	Actuator Length [x]	Actuator Length	Resistance (Ohms)	Actuator Length [x]
Bourns Inc. 3852C-282-103AL	10k	150 ppm/°C	2 W	1	Solder Lug	Linear	22.23 mm	0.875 in	280 °	10 %	User Defined	0.75 in	19.05 mm	1/4-32	0.125 in	3.18 mm	Slotted	1	Cermet
Bourns Inc. 3852C-162-502AL		150 ppm/°C	2 W	1	Solder Lug	Linear			280 °	10 %	User Defined	0.75 in	19.05 mm	1/4-32	0.125 in	3.18 mm	Slotted	1	Cermet	0.5 in	12.7 mm	5 kOhms
Bourns Inc. 3852C-162-503AL		150 ppm/°C	2 W	1	Solder Lug	Linear			280 °	10 %	User Defined	0.75 in	19.05 mm	1/4-32	0.125 in	3.18 mm	Slotted	1	Cermet	0.5 in	12.7 mm	50 kOhms
Bourns Inc. 3852C-202-103AL	10k	150 ppm/°C	2 W	1	Solder Lug	Linear			280 °	10 %	User Defined	0.75 in	19.05 mm	1/4-32	0.125 in	3.18 mm	Slotted	1	Cermet	0.625 in			15.88 mm
Bourns Inc. 3852C-202-104AL		150 ppm/°C	2 W	1	Solder Lug	Linear			280 °	10 %	User Defined	0.75 in	19.05 mm	1/4-32	0.125 in	3.18 mm	Slotted	1	Cermet	0.625 in		100 kOhms	15.88 mm
Bourns Inc. 3852C-282-103A	10k	150 ppm/°C	2 W	1	Solder Lug	Linear	22.23 mm	0.875 in	280 °	10 %	User Defined	0.75 in	19.05 mm	1/4-32	0.125 in	3.18 mm	Slotted	1	Cermet
Bourns Inc. 3852C-282-502AL		150 ppm/°C	2 W	1	Solder Lug	Linear	22.23 mm	0.875 in	280 °	10 %	User Defined	0.75 in	19.05 mm	1/4-32	0.125 in	3.18 mm	Slotted	1	Cermet			5 kOhms
Bourns Inc. 3852C-162-104AL		150 ppm/°C	2 W	1	Solder Lug	Linear			280 °	10 %	User Defined	0.75 in	19.05 mm	1/4-32	0.125 in	3.18 mm	Slotted	1	Cermet	0.5 in	12.7 mm	100 kOhms
Bourns Inc. 3852C-166-502AL		150 ppm/°C	2 W	1	PC Pins	Linear			280 °	10 %	Side Adjustment	0.75 in	19.05 mm	1/4-32	0.125 in	3.18 mm	Slotted	1	Cermet	0.5 in	12.7 mm	5 kOhms
Bourns Inc. 3852C-282-503AL		150 ppm/°C	2 W	1	Solder Lug	Linear	22.23 mm	0.875 in	280 °	10 %	User Defined	0.75 in	19.05 mm	1/4-32	0.125 in	3.18 mm	Slotted	1	Cermet			50 kOhms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	270	$ 8.02

Description

General part information

3852C Series

100k Ohm 1 Gang Linear Panel Mount Potentiometer None 1.0 Kierros Cermet 2W Solder Lug
