Q-2N02Y0008004F

Active

Amphenol Custom Cable

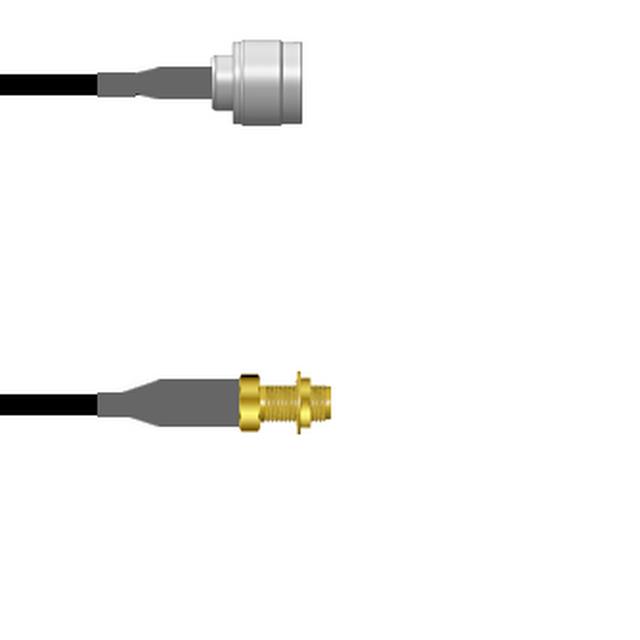

CBL ASSY SMA-NTYPE JACK-PLUG 4'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2N02Y0008004F

Active

Amphenol Custom Cable

CBL ASSY SMA-NTYPE JACK-PLUG 4'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2N02Y0008004F

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-58
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	1 GHz
Length	1200 mm
Length	4 ft
Length	48 in
Overall Impedance	50 Ohms
Style	SMA to N-Type

Q-2N02Y0 Series

Part	2nd Contact Gender	2nd Connector	Length	Length	Length	1st Connector Mounting Type	Overall Impedance	Connector Impedance	Color	1st Connector Mounting Feature	1st Connector	Frequency - Max [Max]	Cable Impedance	2nd Connector Mounting Type	Style	1st Contact Gender	Features	Cable Type	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-2N02Y0008072i	Male	N-Type Plug	6 ft	72 in	1.8 m	Panel Mount	50 Ohms	50 Ohms	Black	Bulkhead - Front Side Nut	SMA Jack	1 GHz	50 Ohms	Free Hanging (In-Line)	SMA to N-Type	Female	Shielded	RG-58
Amphenol Custom Cable Q-2N02Y0008002M	Male	N-Type Plug	6.6 ft	78.7 in	2 m	Panel Mount	50 Ohms	50 Ohms	Black	Bulkhead - Front Side Nut	SMA Jack	1 GHz	50 Ohms	Free Hanging (In-Line)	SMA to N-Type	Female	Shielded	RG-58
Amphenol Custom Cable Q-2N02Y0008084i	Male	N-Type Plug	7 ft	84 in	2.1 m	Panel Mount	50 Ohms	50 Ohms	Black	Bulkhead - Front Side Nut	SMA Jack	1 GHz	50 Ohms	Free Hanging (In-Line)	SMA to N-Type	Female	Shielded	RG-58
Amphenol Custom Cable Q-2N02Y0008003F	Male	N-Type Plug		36 in	91.44 cm	Panel Mount	50 Ohms	50 Ohms	Black	Bulkhead - Front Side Nut	SMA Jack	1 GHz	50 Ohms	Free Hanging (In-Line)	SMA to N-Type	Female	Shielded	RG-58
Amphenol Custom Cable Q-2N02Y0008060i	Male	N-Type Plug	5 ft	5 '	1.5 m	Panel Mount	50 Ohms	50 Ohms	Black	Bulkhead - Front Side Nut	SMA Jack	1 GHz	50 Ohms	Free Hanging (In-Line)	SMA to N-Type	Female	Shielded	RG-58
Amphenol Custom Cable Q-2N02Y0008009i	Male	N-Type Plug		9 "	228.6 mm	Panel Mount	50 Ohms	50 Ohms	Black	Bulkhead - Front Side Nut	SMA Jack	1 GHz	50 Ohms	Free Hanging (In-Line)	SMA to N-Type	Female	Shielded	RG-58
Amphenol Custom Cable Q-2N02Y0008018i	Male	N-Type Plug				Panel Mount	50 Ohms	50 Ohms	Black	Bulkhead - Front Side Nut	SMA Jack	1 GHz	50 Ohms	Free Hanging (In-Line)	SMA to N-Type	Female	Shielded	RG-58	457.2 mm	457.2 mm
Amphenol Custom Cable Q-2N02Y0008006i	Male	N-Type Plug		6 in	152.4 mm	Panel Mount	50 Ohms	50 Ohms	Black	Bulkhead - Front Side Nut	SMA Jack	1 GHz	50 Ohms	Free Hanging (In-Line)	SMA to N-Type	Female	Shielded	RG-58
Amphenol Custom Cable Q-2N02Y0008004F	Male	N-Type Plug	4 ft	48 in	1200 mm	Panel Mount	50 Ohms	50 Ohms	Black	Bulkhead - Front Side Nut	SMA Jack	1 GHz	50 Ohms	Free Hanging (In-Line)	SMA to N-Type	Female	Shielded	RG-58
Amphenol Custom Cable Q-2N02Y0008.25M	Male	N-Type Plug				Panel Mount	50 Ohms		Black	Bulkhead - Front Side Nut	SMA Jack	1 GHz		Free Hanging (In-Line)	SMA to N-Type	Female	Shielded	RG-58		250 mm	9.843 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 80.23
		25	$ 78.66
		50	$ 77.09
		100	$ 75.52
		250	$ 73.96

Description

General part information

Q-2N02Y0 Series

Cable Assembly Coaxial SMA to N-Type RG-58 48.0" (1.2m) 4.0'

Documents

Technical documentation and resources

No documents available
