346-070-521-802
ActiveEDAC Inc.

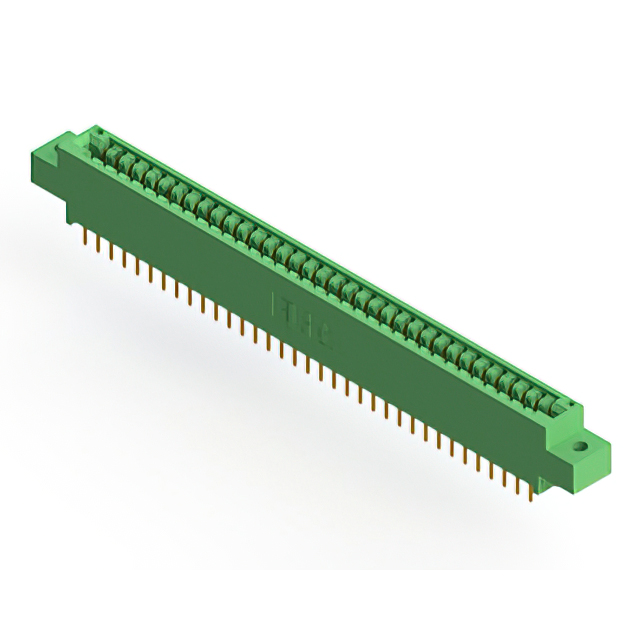

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 70 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
346-070-521-802
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 70 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 346-070-521-802 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 70 |
| Number of Positions/Bay/Row [custom] | 35 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
346-070 Series
...
| Part | Number of Positions/Bay/Row [custom] | Termination Rows | Contact Finish | Pitch [x] | Pitch [x] | Number of Positions | Contact Type | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Read Out | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Color | Flange Feature | Card Type | Contact Material | Material - Insulation | Number of Rows | Gender | Features | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 35 | 2 | Gold | 0.125 in | 3.18 mm | 70 | Cantilever | Solder | -40 °C | 105 ░C | Board Edge Straddle Mount | 10 Áin | 0.25 Ám | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | M3 Threaded Insert Top Mount Opening | Non Specified - Dual Edge | Copper Alloy | Polyester Thermoplastic | 2 | Female | Card Extender | ||||
EDAC Inc. | 35 | 2 | Gold | 0.125 in | 3.18 mm | 70 | Cantilever | Solder Wire Wrap | -40 °C | 105 ░C | Through Hole Right Angle | 10 Áin | 0.25 Ám | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Top Mount Opening Unthreaded | Non Specified - Dual Edge | Copper Alloy | Polyester Thermoplastic | 2 | Female | 0.156 in | 3.96 mm | |||
EDAC Inc. | 35 | 2 | Gold | 0.125 in | 3.18 mm | 70 | Cantilever | Solder | -40 °C | 105 ░C | Board Edge Straddle Mount | 10 Áin | 0.25 Ám | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Non Specified - Dual Edge | Copper Alloy | Polyester Thermoplastic | 2 | Female | Card Extender | |||||
EDAC Inc. | 35 | 2 | Gold | 0.125 in | 3.18 mm | 70 | Cantilever | Solder | -40 °C | 105 ░C | Through Hole | 10 Áin | 0.25 Ám | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | Copper Alloy | Polyester Thermoplastic | 2 | Female | Card Guides | ||||
EDAC Inc. | 35 | 2 | Gold | 0.125 in | 3.18 mm | 70 | Cantilever | Wire Wrap | -40 °C | 105 ░C | Through Hole | 10 Áin | 0.25 Ám | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 4-40 Threaded Insert Top Mount Opening | Non Specified - Dual Edge | Copper Alloy | Polyester Thermoplastic | 2 | Female | Card Guides | ||||
EDAC Inc. | 35 | 2 | Gold | 0.125 in | 3.18 mm | 70 | Cantilever | Wire Wrap | -40 °C | 105 ░C | Through Hole | 10 Áin | 0.25 Ám | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Floating Bobbin Flush Mount | Non Specified - Dual Edge | Copper Alloy | Polyester Thermoplastic | 2 | Female | 0.116 in | 2.95 mm | |||
EDAC Inc. | 35 | 2 | Gold | 0.125 in | 3.18 mm | 70 | Cantilever | Solder | -40 °C | 105 ░C | Through Hole | 10 Áin | 0.25 Ám | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Dual Edge | Copper Alloy | Polyester Thermoplastic | 2 | Female | |||||
EDAC Inc. | 35 | 2 | Gold | 0.125 in | 3.18 mm | 70 | Cantilever | Solder Eyelet(s) | -40 °C | 105 ░C | Through Hole | 10 Áin | 0.25 Ám | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Dual Edge | Copper Alloy | Polyester Thermoplastic | 2 | Female | |||||
EDAC Inc. | 35 | 2 | Gold | 0.125 in | 3.18 mm | 70 | Cantilever | Solder | -40 °C | 105 ░C | Through Hole | 10 Áin | 0.25 Ám | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Non Specified - Dual Edge | Copper Alloy | Polyester Thermoplastic | 2 | Female | 3.25 mm | 0.128 in | ||||
EDAC Inc. | 35 | 2 | Gold | 0.125 in | 3.18 mm | 70 | Cantilever | Solder Wire Wrap | -40 °C | 105 ░C | Through Hole Right Angle | 10 Áin | 0.25 Ám | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Dual Edge | Copper Alloy | Polyester Thermoplastic | 2 | Female |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
346-070 Series
70 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green
