1241.1100.7096

Active

SCHURTER Inc.

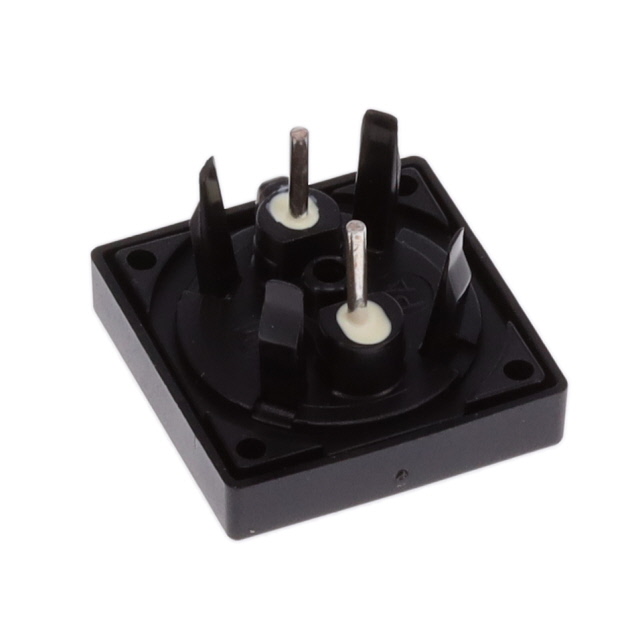

SWITCH PUSH SPST-NO 125MA 48V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1241.1100.7096

Active

SCHURTER Inc.

SWITCH PUSH SPST-NO 125MA 48V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.32
		50	$ 7.12
		100	$ 5.48
		500	$ 4.44
		1000	$ 4.05

Description

General part information

1241.1100 Series

Pushbutton Switch SPST-NO Standard Panel Mount, Snap-In

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1241.1100.7096	1241.1100 Series

Actuator Marking	No Marking	No Marking
Circuit	SPST-NO	SPST-NO
Color - Actuator/Cap	-	Red, Silver
Current Rating (Amps)	125 mA	125 mA
Electrical Life	1000000 Cycles	1000000 Cycles
Features	Tactile Feedback	Tactile Feedback
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles	1000000 Cycles
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	13 mm	13 mm
Switch Function	Off-Mom	Off-Mom
Termination Style	Solder Lug	Solder Lug
Type	Standard	Standard
Voltage Rating - DC	48 V	48 V

1241.1100 Series

SWITCH PUSH SPST-NO 125MA 48V

Part	Mechanical Life	Termination Style	Type	Voltage Rating - DC	Ingress Protection	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Actuator Marking	Switch Function	Features	Circuit	Color - Actuator/Cap
SCHURTER Inc. 1241.1100.8036	1000000 Cycles	Solder Lug	Standard	48 V	IP65 - Dust Tight, Water Resistant	Panel Mount, Snap-In	-25 °C	60 °C	1000000 Cycles	125 mA	13 mm	No Marking	Off-Mom	Tactile Feedback	SPST-NO
SCHURTER Inc. 1241.1100.7093	1000000 Cycles	Solder Lug	Standard	48 V	IP65 - Dust Tight, Water Resistant	Panel Mount, Snap-In	-25 °C	60 °C	1000000 Cycles	125 mA	13 mm	No Marking	Off-Mom	Tactile Feedback	SPST-NO	Red
SCHURTER Inc. 1241.1100.7094	1000000 Cycles	Solder Lug	Standard	48 V	IP65 - Dust Tight, Water Resistant	Panel Mount, Snap-In	-25 °C	60 °C	1000000 Cycles	125 mA	13 mm	No Marking	Off-Mom	Tactile Feedback	SPST-NO	Silver
SCHURTER Inc. 1241.1100.7096	1000000 Cycles	Solder Lug	Standard	48 V	IP65 - Dust Tight, Water Resistant	Panel Mount, Snap-In	-25 °C	60 °C	1000000 Cycles	125 mA	13 mm	No Marking	Off-Mom	Tactile Feedback	SPST-NO
SCHURTER Inc. 1241.1100.7047	1000000 Cycles	Solder Lug	Standard	48 V	IP65 - Dust Tight, Water Resistant	Panel Mount, Snap-In	-25 °C	60 °C	1000000 Cycles	125 mA	13 mm	No Marking	Off-Mom	Tactile Feedback	SPST-NO
SCHURTER Inc. 1241.1100.7058	1000000 Cycles	Solder Lug	Standard	48 V	IP65 - Dust Tight, Water Resistant	Panel Mount, Snap-In	-25 °C	60 °C	1000000 Cycles	125 mA	13 mm	No Marking	Off-Mom	Tactile Feedback	SPST-NO
SCHURTER Inc. 1241.1100.8032	1000000 Cycles	Solder Lug	Standard	48 V	IP65 - Dust Tight, Water Resistant	Panel Mount, Snap-In	-25 °C	60 °C	1000000 Cycles	125 mA	13 mm	No Marking	Off-Mom	Tactile Feedback	SPST-NO
