HPC 8040NV-470M

Active

TAI-TECH Advanced Electronics Co., Ltd.

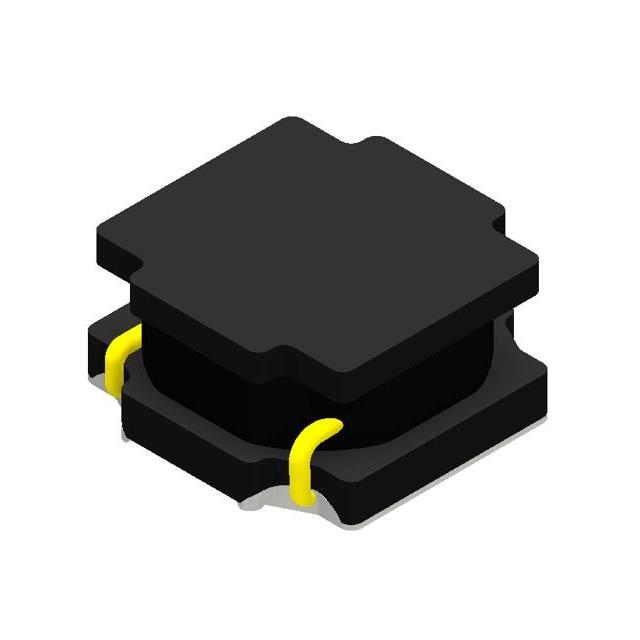

FIXED IND 47UH 1.7A 0.135OHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HPC 8040NV-470M

Active

TAI-TECH Advanced Electronics Co., Ltd.

FIXED IND 47UH 1.7A 0.135OHM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HPC 8040NV-470M	HPC 8040NV Series

Current - Saturation (Isat)	1.9 A	1.2 - 900 A
Current Rating (Amps)	1.7 A	1.1 - 760 A
DC Resistance (DCR)	135 mOhm	11.5 - 610 mOhm
Height - Seated (Max) [Max]	0.157 in	0.157 in
Height - Seated (Max) [Max]	4 mm	4 mm
Inductance	47 µH	1 - 220 µH
Inductance Frequency - Test	1 MHz	1 MHz
Material - Core	Ferrite	Ferrite
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	3131 (8080 Metric)	1212, 3131 (8080 Metric)
Package / Case	-	3030 Metric
Ratings	AEC-Q200	AEC-Q200
Shielding	Shielded	Shielded
Size / Dimension [x]	0.315 "	0.315 "
Size / Dimension [x]	8 mm	8 mm
Size / Dimension [y]	0.315 in	0.315 in
Size / Dimension [y]	8 mm	8 mm
Supplier Device Package	8040	8040
Tolerance	20 %	20 - 30 %
Type	Wirewound	Wirewound

HPC 8040NV Series

FIXED IND 1UH 8.5A 0.007OHM SMD

Part	Type	Inductance Frequency - Test	Mounting Type	Package / Case	Package / Case	Shielding	Supplier Device Package	Material - Core	Tolerance	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Inductance	Current Rating (Amps)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Current - Saturation (Isat)	DC Resistance (DCR)
TAI-TECH Advanced Electronics Co., Ltd. HPC 8040NV-1R0Y	Wirewound	1 MHz	Surface Mount	1212	3030 Metric	Shielded	8040	Ferrite	30 %	AEC-Q200	-55 °C	125 °C	1 µH	8.5 A	0.315 in	8 mm	0.315 "	8 mm	0.157 in	4 mm
TAI-TECH Advanced Electronics Co., Ltd. HPC 8040NV-220M	Wirewound	1 MHz	Surface Mount	3131 (8080 Metric)		Shielded	8040	Ferrite	20 %	AEC-Q200	-55 °C	125 °C	22 µH	2.45 A	0.315 in	8 mm	0.315 "	8 mm	0.157 in	4 mm	2.8 A	73 mOhm
TAI-TECH Advanced Electronics Co., Ltd. HPC 8040NV-4R7M	Wirewound	1 MHz	Surface Mount	3131 (8080 Metric)		Shielded	8040	Ferrite	20 %	AEC-Q200	-55 °C	125 °C	4.7 ÁH	5.3 A	0.315 in	8 mm	0.315 "	8 mm	0.157 in	4 mm	6 A
TAI-TECH Advanced Electronics Co., Ltd. HPC 8040NV-470M	Wirewound	1 MHz	Surface Mount	3131 (8080 Metric)		Shielded	8040	Ferrite	20 %	AEC-Q200	-55 °C	125 °C	47 µH	1.7 A	0.315 in	8 mm	0.315 "	8 mm	0.157 in	4 mm	1.9 A	135 mOhm
TAI-TECH Advanced Electronics Co., Ltd. HPC 8040NV-100M	Wirewound	1 MHz	Surface Mount	3131 (8080 Metric)		Shielded	8040	Ferrite	20 %	AEC-Q200	-55 °C	125 °C	10 µH	4.2 A	0.315 in	8 mm	0.315 "	8 mm	0.157 in	4 mm	4.3 A	33 mOhm
TAI-TECH Advanced Electronics Co., Ltd. HPC 8040NV-101M	Wirewound	1 MHz	Surface Mount	3131 (8080 Metric)		Shielded	8040	Ferrite	20 %	AEC-Q200	-55 °C	125 °C	100 µH	1.1 A	0.315 in	8 mm	0.315 "	8 mm	0.157 in	4 mm	1.2 A	300 mOhm
TAI-TECH Advanced Electronics Co., Ltd. HPC 8040NV-221M	Wirewound	1 MHz	Surface Mount	3131 (8080 Metric)		Shielded	8040	Ferrite	20 %	AEC-Q200	-55 °C	125 °C	220 µH	760 mA	0.315 in	8 mm	0.315 "	8 mm	0.157 in	4 mm	900 mA	610 mOhm
TAI-TECH Advanced Electronics Co., Ltd. HPC 8040NV-2R2M	Wirewound	1 MHz	Surface Mount	3131 (8080 Metric)		Shielded	8040	Ferrite	20 %	AEC-Q200	-55 °C	125 °C	2.2 µH	6.9 A	0.315 in	8 mm	0.315 "	8 mm	0.157 in	4 mm	9.2 A	11.5 mOhm
