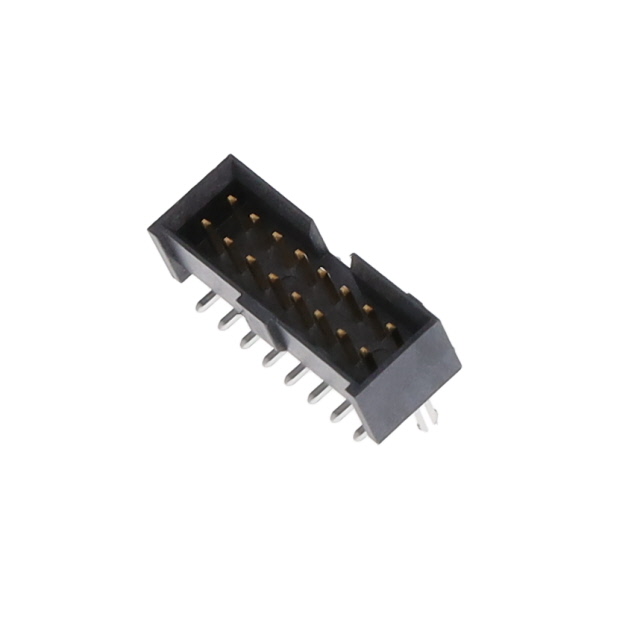

LTMM-108-02-S-D-SM-LC - LTMM-108-02-S-D-SM-LC

LTMM-108-02-S-D-SM-LC

Active
Samtec Inc.

CONN HEADER SMD 16POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsLTMM Series Other Related Documents 01Datasheet+2
LTMM-108-02-S-D-SM-LC - LTMM-108-02-S-D-SM-LC

LTMM-108-02-S-D-SM-LC

Active
Samtec Inc.

CONN HEADER SMD 16POS 2MM

Deep-Dive with AI

DocumentsLTMM Series Other Related Documents 01Datasheet+2

Technical Specifications

Parameters and characteristics for this part

SpecificationLTMM-108-02-S-D-SM-LC
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thickness - Mating30 Áin
Contact Finish Thickness - Mating0.76 Ám
Contact Length - Mating3.05 mm
Contact Length - Mating0.12 in
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeMale Pin
Fastening TypePush-Pull
FeaturesBoard Lock, Keying Slot
Insulation ColorBlack
Insulation Height4.83 mm
Insulation Height0.19 in
Insulation MaterialLiquid Crystal Polymer (LCP)
Mounting TypeSurface Mount
Number of Positions16
Number of Positions LoadedAll
Number of Rows2
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Pitch - Mating [x]0.079 in
Pitch - Mating [x]2 mm
Row Spacing - Mating0.079 in
Row Spacing - Mating2 mm
ShroudingShrouded - 4 Wall
TerminationSolder

LTMM-108 Series

PartContact Finish - PostOperating Temperature [Max]Operating Temperature [Min]Contact ShapeShroudingInsulation HeightInsulation HeightNumber of Positions LoadedInsulation ColorContact TypeFeaturesFastening TypeNumber of PositionsContact Length - PostContact Length - PostTerminationRow Spacing - MatingRow Spacing - MatingMounting TypeContact MaterialPitch - Mating [x]Pitch - Mating [x]Connector TypeNumber of RowsInsulation MaterialContact Length - MatingContact Length - MatingContact Finish - MatingContact Finish Thickness - MatingContact Finish Thickness - MatingContact Finish Thickness - PostContact Finish Thickness - Post
Samtec Inc.
LTMM-108-02-T-D
Tin
105 ░C
-55 °C
Square
Shrouded - 4 Wall
4.83 mm
0.19 in
All
Black
Male Pin
Keying Slot
Push-Pull
16
0.117 in
2.97 mm
Solder
0.079 in
2 mm
Through Hole
Phosphor Bronze
0.079 in
2 mm
Header
2
Liquid Crystal Polymer (LCP)
3.05 mm
0.12 in
Samtec Inc.
LTMM-108-02-S-D-LC
Tin
105 ░C
-55 °C
Square
Shrouded - 4 Wall
4.83 mm
0.19 in
All
Black
Male Pin
Board Lock
Keying Slot
Push-Pull
16
0.117 in
2.97 mm
Solder
0.079 in
2 mm
Through Hole
Phosphor Bronze
0.079 in
2 mm
Header
2
Liquid Crystal Polymer (LCP)
3.05 mm
0.12 in
Gold
30 Áin
0.76 Ám
Samtec Inc.
LTMM-108-02-G-D-SM-LC-P-TR
Gold
125 °C
-55 °C
Square
Shrouded - 4 Wall
4.83 mm
0.19 in
All
Black
Male Pin
Board Lock
Keying Slot
Pick and Place
Push-Pull
16
Solder
0.079 in
2 mm
Surface Mount
Phosphor Bronze
0.079 in
2 mm
Header
2
Liquid Crystal Polymer (LCP)
3.05 mm
0.12 in
Gold
20 µin
0.51 µm
3 µin
0.076 µm
Samtec Inc.
LTMM-108-01-F-D-RA
Tin
105 ░C
-55 °C
Square
Shrouded - 4 Wall
6.03 mm
0.237 in
All
Black
Male Pin
Keying Slot
Push-Pull
16
0.09 "
2.29 mm
Solder
0.079 in
2 mm
Through Hole
Right Angle
Phosphor Bronze
0.079 in
2 mm
Header
2
Liquid Crystal Polymer (LCP)
2.54 mm
0.1 in
Gold
3 µin
0.076 µm
Samtec Inc.
LTMM-108-02-S-D-SM-LC
Tin
125 °C
-55 °C
Square
Shrouded - 4 Wall
4.83 mm
0.19 in
All
Black
Male Pin
Board Lock
Keying Slot
Push-Pull
16
Solder
0.079 in
2 mm
Surface Mount
Phosphor Bronze
0.079 in
2 mm
Header
2
Liquid Crystal Polymer (LCP)
3.05 mm
0.12 in
Gold
30 Áin
0.76 Ám
Samtec Inc.
LTMM-108-02-L-D-SM
Tin
105 ░C
-55 °C
Square
Shrouded - 4 Wall
4.83 mm
0.19 in
All
Black
Male Pin
Keying Slot
Push-Pull
16
Solder
0.079 in
2 mm
Surface Mount
Phosphor Bronze
0.079 in
2 mm
Header
2
Liquid Crystal Polymer (LCP)
3.05 mm
0.12 in
Gold
10 çin
0.25 çm
Samtec Inc.
LTMM-108-02-G-D-RA
Gold
125 °C
-55 °C
Square
Shrouded - 4 Wall
6.03 mm
0.237 in
All
Black
Male Pin
Keying Slot
Push-Pull
16
0.09 "
2.29 mm
Solder
0.079 in
2 mm
Through Hole
Right Angle
Phosphor Bronze
0.079 in
2 mm
Header
2
Liquid Crystal Polymer (LCP)
3.05 mm
0.12 in
Gold
20 µin
0.51 µm
3 µin
0.076 µm
Samtec Inc.
LTMM-108-01-T-D-RA
Tin
105 ░C
-55 °C
Square
Shrouded - 4 Wall
6.03 mm
0.237 in
All
Black
Male Pin
Keying Slot
Push-Pull
16
0.09 "
2.29 mm
Solder
0.079 in
2 mm
Through Hole
Right Angle
Phosphor Bronze
0.079 in
2 mm
Header
2
Liquid Crystal Polymer (LCP)
2.54 mm
0.1 in
Samtec Inc.
LTMM-108-02-S-D-SM-LC-K
Tin
105 ░C
-55 °C
Square
Shrouded - 4 Wall
4.83 mm
0.19 in
All
Black
Male Pin
Board Lock
Keying Slot
Pick and Place
Push-Pull
16
Solder
0.079 in
2 mm
Surface Mount
Phosphor Bronze
0.079 in
2 mm
Header
2
Liquid Crystal Polymer (LCP)
3.05 mm
0.12 in
Gold
30 Áin
0.76 Ám
Samtec Inc.
LTMM-108-02-S-D
Tin
105 ░C
-55 °C
Square
Shrouded - 4 Wall
4.83 mm
0.19 in
All
Black
Male Pin
Keying Slot
Push-Pull
16
0.117 in
2.97 mm
Solder
0.079 in
2 mm
Through Hole
Phosphor Bronze
0.079 in
2 mm
Header
2
Liquid Crystal Polymer (LCP)
3.05 mm
0.12 in
Gold
30 Áin
0.76 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1$ 7.35
10$ 6.79
25$ 6.42
50$ 6.19
100$ 4.82
500$ 4.37
1000$ 4.34

Description

General part information

LTMM-108 Series

Connector Header Surface Mount 16 position 0.079" (2.00mm)
