PM8805TR
ActiveIEEE 802.3BT POE-PD INTERFACE WITH EMBEDDED DUAL ACTIVE BRIDGE
Deep-Dive with AI
Search across all available documentation for this part.
PM8805TR
ActiveIEEE 802.3BT POE-PD INTERFACE WITH EMBEDDED DUAL ACTIVE BRIDGE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PM8805TR |
|---|---|
| Auxiliary Sense | True |
| Current - Supply | 15 çA |
| Internal Switch(s) | True |
| Mounting Type | Surface Mount |
| Number of Channels [custom] | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

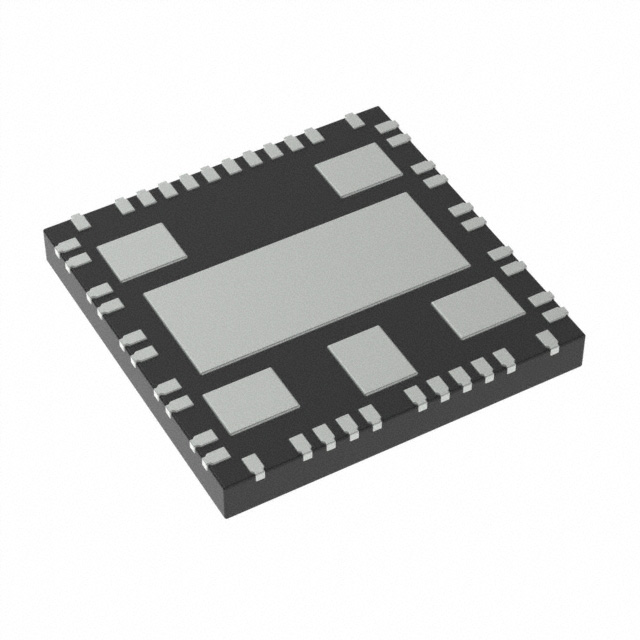

| Package / Case | 43-VFQFN Exposed Pad |
| Power - Max [Max] | 99.9 W |
| Standards | 802.3bt, 802.3at (PoE+), 802.3af (PoE) |
| Supplier Device Package | 43-VFQFPN (8x8) |
| Type | Controller (PD), DC/DC |
| Voltage - Supply [Max] | 57 V |
| Voltage - Supply [Min] | 9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 8.55 | |
| 10 | $ 6.63 | |||
| 25 | $ 6.16 | |||
| 100 | $ 5.63 | |||
| 250 | $ 5.38 | |||
| 500 | $ 5.23 | |||
| 1000 | $ 5.10 | |||
| Digi-Reel® | 1 | $ 8.55 | ||
| 10 | $ 6.63 | |||
| 25 | $ 6.16 | |||
| 100 | $ 5.63 | |||
| 250 | $ 5.38 | |||
| 500 | $ 5.23 | |||
| 1000 | $ 5.10 | |||
| Tape & Reel (TR) | 2500 | $ 4.97 | ||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 8.55 | |
| 10 | $ 6.63 | |||
| 25 | $ 6.02 | |||
| 50 | $ 5.83 | |||
| 100 | $ 5.63 | |||
| 250 | $ 5.38 | |||
| 500 | $ 5.22 | |||
| 1000 | $ 5.09 | |||
Description
General part information
PM8805 Series
The PM8805 is a system-in-package for smart power supply of Power over Ethernet (PoE) Powered Devices (PD) and it is applicable for power level up to 99.9 W.
It embeds: two active bridges and their driving circuitry, a charge pump to drive the high-side MOSFETs, the hot swap MOSFET and the interface compliant with IEEE 802.3bt.
The device performs the physical layer classification, providing the indication of successful PSE type identification. A 4-pair PSE is identified and the information is available by a dedicated matrix of Tx signals.
