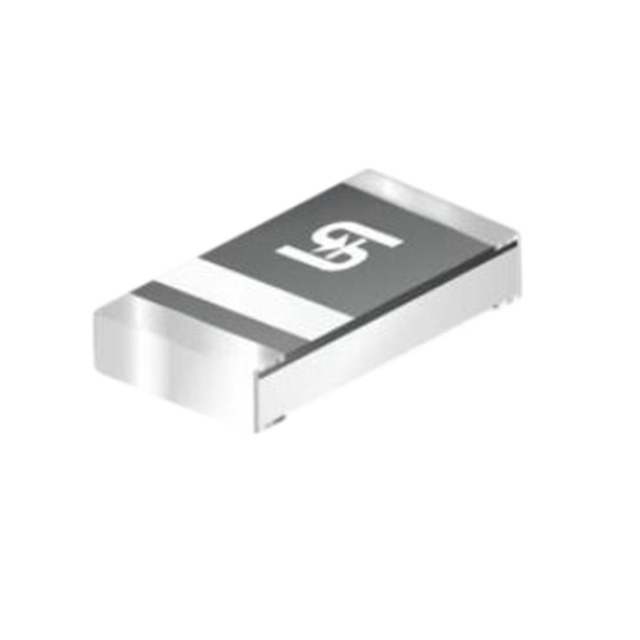

TSS0230LU RGG
Taiwan Semiconductor Corporation
DIODE SCHOTTKY 35V 200MA 0603
Deep-Dive with AI
Search across all available documentation for this part.
TSS0230LU RGG
Taiwan Semiconductor Corporation
DIODE SCHOTTKY 35V 200MA 0603
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TSS0230LU RGG |
|---|---|
| Current - Average Rectified (Io) | 200 mA |
| Current - Reverse Leakage @ Vr | 30 µA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 125 °C |
| Operating Temperature - Junction [Min] | -40 °C |
| Package / Case | 0603 (1608 Metric) |
| Speed | Any Speed |
| Speed | 200 mA |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 35 V |
| Voltage - Forward (Vf) (Max) @ If | 500 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 4000 | $ 0.07 | |
| 8000 | $ 0.06 | |||
| 12000 | $ 0.05 | |||
| 28000 | $ 0.05 | |||
| 100000 | $ 0.04 | |||
| 200000 | $ 0.04 | |||
Description
General part information
TSS0230 Series
Diode 35 V 200mA Surface Mount 0603
Documents
Technical documentation and resources
No documents available
