SLA6012
ObsoleteSanken Electric USA Inc.

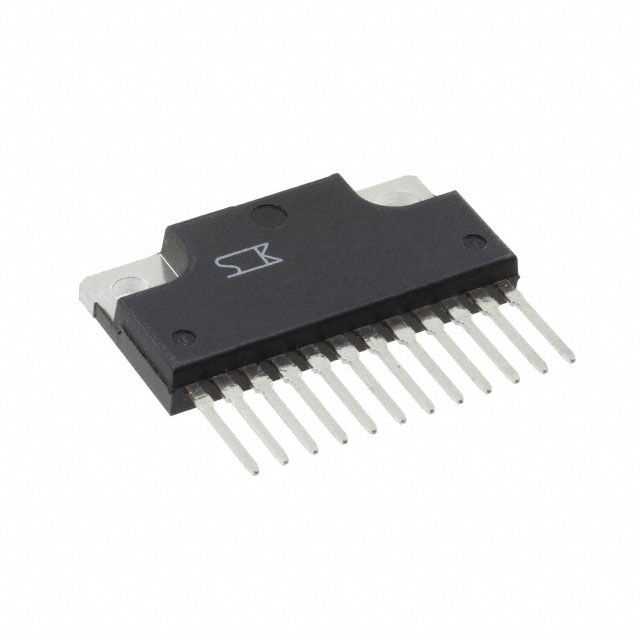

TRANS 3NPN/3PNP DARL 60V 12SIP
SLA6012
ObsoleteSanken Electric USA Inc.
TRANS 3NPN/3PNP DARL 60V 12SIP
Description
General part information
SLA60 Series
Bipolar (BJT) Transistor Array 3 NPN, 3 PNP Darlington (3-Phase Bridge) 60V 4A 5W, 25W Through Hole 12-SIP
Technical Specifications
Parameters and characteristics for this part
| Specification | SLA6012 |
|---|---|
| Current - Collector (Ic) (Max) | 4 A |
| Current - Collector Cutoff (Max) | 10 µA |
| DC Current Gain (hFE) (Min) | 2000 |
| Mounting Type | Through Hole |
| NPN Count | 3 |
| Operating Temperature | 150 °C |
| Package / Case | 12-SIP Exposed Tab |
| Package Name | 12-SIP |
| PNP Count | 3 |
| Power - Max (Value 1) | 5 W |
| Power - Max (Value 2) | 25 W |
| Transistor Configuration | 3-Phase Bridge, Darlington |
| Transistor Type | NPN, PNP |
| Vce Saturation (Max) | 1.5 V |
| Voltage - Collector Emitter Breakdown (Max) | 60 V |
