M2013EA2W45

Obsolete

NKK Switches

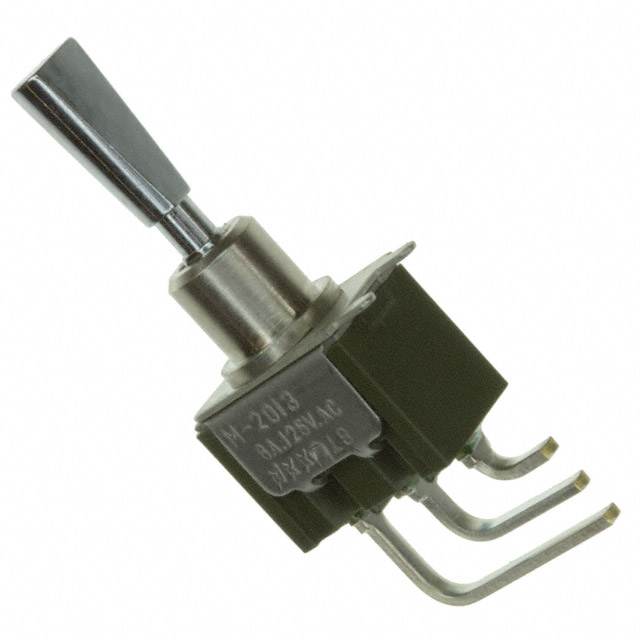

SWITCH TOGGLE SPDT 6A 125V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH TOGGLE SPDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	M2013EA2W45

Actuator Length [x]	13.21 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Flatted
Bushing Thread	Unthreaded
Circuit	SPDT
Current Rating (Amps)	3 A, 6 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Mounting Type	Through Hole, Vertical, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-Off-On
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Voltage Rating - DC	Electrical Life	Panel Cutout Dimensions [diameter]	Mounting Type	Switch Function	Features	Current Rating (Amps)	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Length [x]	Actuator Material	Termination Style	Voltage Rating - AC	Bushing Thread	Illumination	Actuator Type
NKK Switches M2013EA2W45	30 V	25000 Steps	6.5 mm	Right Angle Through Hole Vertical	On-Off-On	Epoxy Sealed Terminals	3 A 6 A	SPDT	-30 ░C	85 °C	13.21 mm	Brass Chrome Plated	PC Pin	125 V	Unthreaded	Non-Illuminated	Flatted

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Through Hole, Right Angle, Vertical
