1-1318300-0

Active

TE Connectivity AMP Connectors

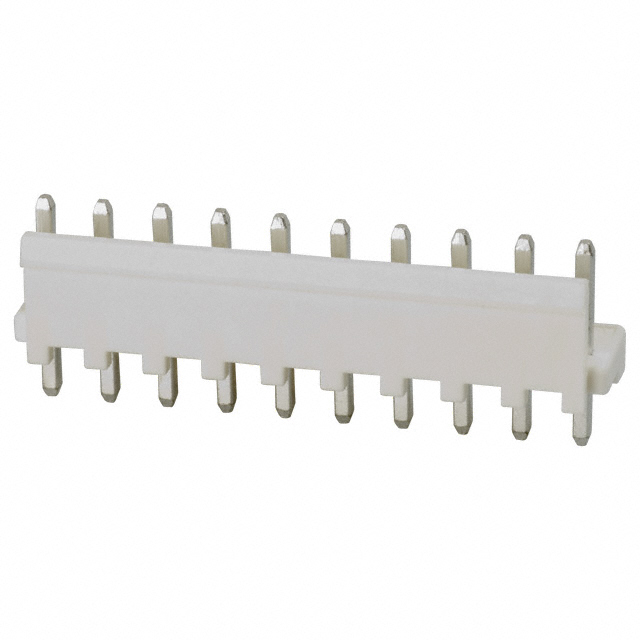

CONN HEADER VERT 10POS 3.96MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1-1318300-0

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 10POS 3.96MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-1318300-0	1318300 Series

Applications	General Purpose, Industrial, Lighting	General Purpose, Industrial, Lighting
Connector Type	Header	Header
Contact Finish - Post	Tin	Tin
Contact Length - Mating	7.7 mm	7.7 mm
Contact Length - Mating	0.303 in	0.303 in
Contact Length - Post	0.146 in	0.146 in
Contact Length - Post	3.7 mm	3.7 mm
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	7.5 A	7.5 A
Fastening Type	Locking Ramp	Locking Ramp
Insulation Color	Natural	Natural
Insulation Height	0.118 in	0.118 in
Insulation Height	3 mm	3 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	10	6 - 10
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-25 °C	-25 °C
Overall Contact Length	14.4 mm	14.4 mm
Overall Contact Length	0.567 "	0.567 "
Pitch - Mating	0.156 in	0.156 in
Pitch - Mating	3.96 mm	3.96 mm
Shrouding	Shrouded - 1 Wall	Shrouded - 1 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	250 VAC	250 VAC

1318300 Series

CONN HEADER VERT 6POS 3.96MM

Part	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Insulation Color	Contact Shape	Contact Material	Shrouding	Number of Positions	Fastening Type	Connector Type	Number of Rows	Insulation Height	Insulation Height	Termination	Overall Contact Length	Overall Contact Length	Insulation Material	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Voltage Rating	Style	Current Rating (Amps)	Number of Positions Loaded	Mounting Type	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Contact Type
TE Connectivity AMP Connectors 1-1318300-6	Tin	-25 °C	105 ░C	General Purpose, Industrial, Lighting	Natural	Square	Brass	Shrouded - 1 Wall	6	Locking Ramp	Header	1	0.118 in	3 mm	Solder	14.4 mm	0.567 "	Polybutylene Terephthalate (PBT), Glass Filled	7.7 mm	0.303 in	UL94 V-0	250 VAC	Board to Cable/Wire	7.5 A	All	Through Hole	0.146 in	3.7 mm	0.156 in	3.96 mm	Male Pin
TE Connectivity AMP Connectors 1-1318300-0	Tin	-25 °C	105 ░C	General Purpose, Industrial, Lighting	Natural	Square	Brass	Shrouded - 1 Wall	10	Locking Ramp	Header	1	0.118 in	3 mm	Solder	14.4 mm	0.567 "	Polybutylene Terephthalate (PBT), Glass Filled	7.7 mm	0.303 in	UL94 V-0	250 VAC	Board to Cable/Wire	7.5 A	All	Through Hole	0.146 in	3.7 mm	0.156 in	3.96 mm	Male Pin
TE Connectivity AMP Connectors 1-1318300-7	Tin	-25 °C	105 ░C	General Purpose, Industrial, Lighting	Natural	Square	Brass	Shrouded - 1 Wall	7	Locking Ramp	Header	1	0.118 in	3 mm	Solder	14.4 mm	0.567 "	Polybutylene Terephthalate (PBT), Glass Filled	7.7 mm	0.303 in	UL94 V-0	250 VAC	Board to Cable/Wire	7.5 A	All	Through Hole	0.146 in	3.7 mm	0.156 in	3.96 mm	Male Pin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 0.61
		12	$ 0.58
		108	$ 0.48
		504	$ 0.45

Description

General part information

1318300 Series

Connector Header Through Hole 10 position 0.156" (3.96mm)
