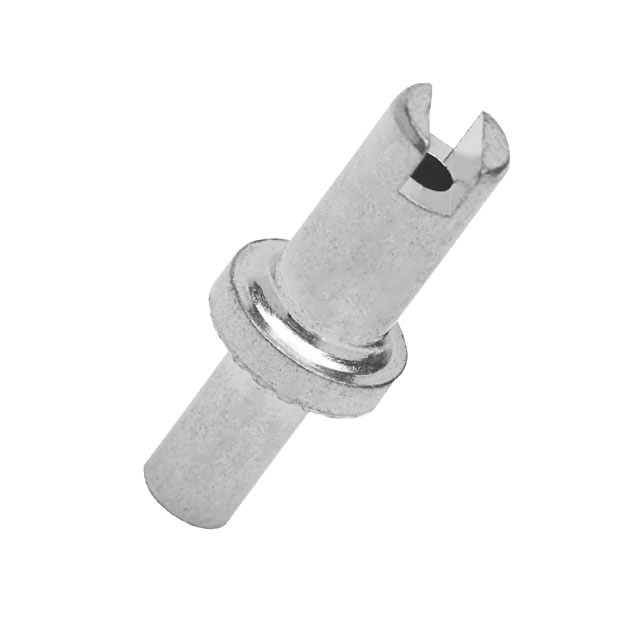

H3072-01

Active

Harwin Inc.

VERTICAL THROUGHBOARD SLOTTED LUG ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

VERTICAL THROUGHBOARD SLOTTED LUG ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	H3072-01

Board Thickness	3.2 mm
Board Thickness	0.126 in
Contact Finish	Tin
Contact Material	Brass Alloy
Flange Diameter [Max]	4.09 mm
Flange Diameter [Max]	0.161 "
Flange Diameter [Min]	0.156 "
Flange Diameter [Min]	3.96 mm
Insulation	Non-Insulated
Length - Above Board [Max] [x]	0.261 in
Length - Above Board [Max] [x]	6.62 mm
Length - Above Board [Min] [x]	0.241 in
Length - Above Board [Min] [x]	6.12 mm
Length - Below Flange [x]	0.156 in, 0.161 in
Length - Below Flange [x]	3.96 mm, 4.09 mm
Length - Overall [Max]	10.71 mm
Length - Overall [Max]	0.422 in
Length - Overall [Min]	10.21 mm
Length - Overall [Min]	0.402 in
Mounting Hole Diameter [Max] [diameter]	0.083 "
Mounting Hole Diameter [Max] [diameter]	2.11 mm
Mounting Hole Diameter [Min] [diameter]	2.03 mm
Mounting Hole Diameter [Min] [diameter]	0.08 "
Mounting Type	Through Hole
Number of Turrets	Single
Staking Side OD [Max] [diameter]	0.079 in, 2.01 mm
Staking Side OD [Min] [diameter]	0.076 in, 1.93 mm
Terminal Type	Fork, Single End, Hollow
Termination	Swage

Part	Flange Diameter [Min]	Flange Diameter [Max]	Flange Diameter [Max]	Flange Diameter [Min]	Contact Material	Length - Above Board [Min] [x]	Length - Above Board [Max] [x]	Length - Above Board [Min] [x]	Length - Above Board [Max] [x]	Terminal Type	Termination	Length - Overall [Max]	Length - Overall [Max]	Length - Overall [Min]	Length - Overall [Min]	Mounting Type	Insulation	Mounting Hole Diameter [Min] [diameter]	Mounting Hole Diameter [Min] [diameter]	Mounting Hole Diameter [Max] [diameter]	Mounting Hole Diameter [Max] [diameter]	Board Thickness	Board Thickness	Staking Side OD [Min] [diameter]	Staking Side OD [Max] [diameter]	Contact Finish	Length - Below Flange [x]	Length - Below Flange [x]	Number of Turrets
Harwin Inc. H3072-01	0.156 "	4.09 mm	0.161 "	3.96 mm	Brass Alloy	0.241 in	0.261 in	6.12 mm	6.62 mm	Fork Hollow Single End	Swage	10.71 mm	0.422 in	10.21 mm	0.402 in	Through Hole	Non-Insulated	2.03 mm	0.08 "	0.083 "	2.11 mm	3.2 mm	0.126 in	0.076 in 1.93 mm	0.079 in 2.01 mm	Tin	0.156 in 0.161 in	3.96 mm 4.09 mm	Single

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10000	$ 0.28
Newark	Each	1000	$ 0.35

General part information

Terminal Turret Connector Single End, Fork, Hollow 0.241" ~ 0.261" (6.12mm ~ 6.62mm) Tin
