T1M-02-F-SH-L-K

Active

Samtec Inc.

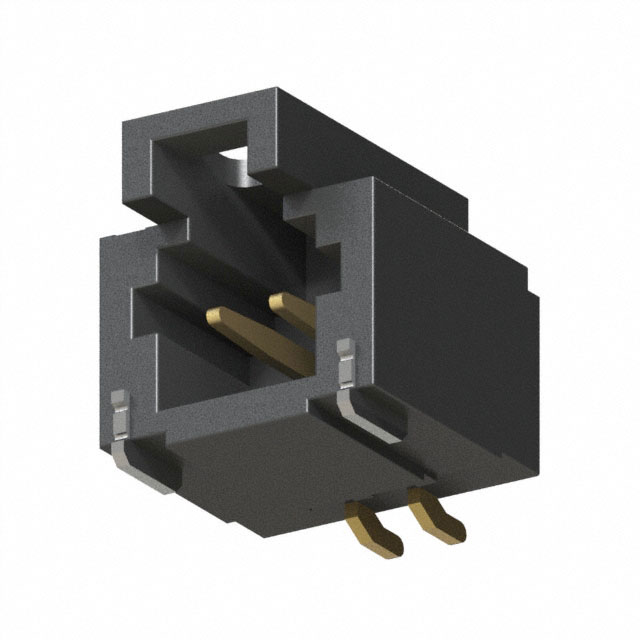

CONN HEADER SMD R/A 2POS 1MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDiscrete Wire Terminal Strip, 1.00 mm Pitch Datasheet +2

T1M-02-F-SH-L-K

Active

Samtec Inc.

CONN HEADER SMD R/A 2POS 1MM

Deep-Dive with AI

DocumentsDiscrete Wire Terminal Strip, 1.00 mm Pitch Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T1M-02-F-SH-L-K

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.3 A
Fastening Type	Locking Ramp
Features	Pick and Place
Insulation Color	Natural
Insulation Height	4.6 mm
Insulation Height	0.181 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC, 353 VDC

T1M-02 Series

Part	Contact Material	Current Rating (Amps)	Fastening Type	Insulation Color	Number of Positions Loaded	Number of Rows	Style	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Insulation Material	Contact Finish - Mating	Shrouding	Number of Positions	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Voltage Rating	Termination	Mounting Type	Contact Finish - Post	Contact Shape	Features	Insulation Height [custom]	Insulation Height [custom]
Samtec Inc. T1M-02-GF-DH	Phosphor Bronze	3.3 A	Locking Ramp	Natural	All	2	Board to Cable/Wire	0.246 in	6.25 mm	85 °C	-55 °C	3 µin	0.076 µm	Male Pin	3 µin	0.076 µm	Header	Liquid Crystal Polymer (LCP)	Gold	Shrouded - 4 Wall	4	0.039 in	1 mm	UL94 V-0	250 VAC 353 VDC	Solder	Surface Mount Right Angle	Gold	Square
Samtec Inc. T1M-02-F-SH-L-K	Phosphor Bronze	3.3 A	Locking Ramp	Natural	All	1	Board to Cable/Wire	0.181 in	4.6 mm	85 °C	-55 °C			Male Pin	3 µin	0.076 µm	Header	Liquid Crystal Polymer (LCP)	Gold	Shrouded - 4 Wall	2	0.039 in	1 mm	UL94 V-0	250 VAC 353 VDC	Solder	Surface Mount Right Angle	Tin	Square	Pick and Place
Samtec Inc. T1M-02-S-S-V-TR	Phosphor Bronze	3.3 A	Locking Ramp	Natural	All	1	Board to Cable/Wire	0.167 in	4.25 mm	85 °C	-55 °C			Male Pin			Header	Liquid Crystal Polymer (LCP)	Gold	Shrouded - 4 Wall	2	0.039 in	1 mm	UL94 V-0	250 VAC 353 VDC	Solder	Surface Mount	Tin	Square
Samtec Inc. T1M-02-T-S-RA-TR	Phosphor Bronze	3.3 A	Locking Ramp	Black	All	1	Board to Cable/Wire	0.181 in	4.6 mm	85 °C	-55 °C			Male Pin			Header	Liquid Crystal Polymer (LCP)		Shrouded - 4 Wall	2	0.039 in	1 mm	UL94 V-0	250 VAC 353 VDC	Solder	Surface Mount Right Angle	Tin	Square
Samtec Inc. T1M-02-T-SH-L	Phosphor Bronze	3.3 A	Locking Ramp	Natural	All	1	Board to Cable/Wire	0.181 in	4.6 mm	85 °C	-55 °C			Male Pin			Header	Liquid Crystal Polymer (LCP)		Shrouded - 4 Wall	2	0.039 in	1 mm	UL94 V-0	250 VAC 353 VDC	Solder	Surface Mount Right Angle	Tin	Square
Samtec Inc. T1M-02-T-S-V-TR	Phosphor Bronze	3.3 A	Locking Ramp	Black	All	1	Board to Cable/Wire	0.167 in	4.25 mm	85 °C	-55 °C			Male Pin			Header	Liquid Crystal Polymer (LCP)		Shrouded - 4 Wall	2	0.039 in	1 mm	UL94 V-0	250 VAC 353 VDC	Solder	Surface Mount	Tin	Square
Samtec Inc. T1M-02-GF-S-RA-TR	Phosphor Bronze	3.3 A	Locking Ramp	Black	All	1	Board to Cable/Wire	0.181 in	4.6 mm	85 °C	-55 °C			Male Pin	3 µin	0.076 µm	Header	Liquid Crystal Polymer (LCP)	Gold	Shrouded - 4 Wall	2	0.039 in	1 mm	UL94 V-0	250 VAC 353 VDC	Solder	Surface Mount Right Angle	Tin	Square
Samtec Inc. T1M-02-F-SV-L	Phosphor Bronze	3.3 A	Locking Ramp	Natural	All	1	Board to Cable/Wire			85 °C	-55 °C			Male Pin	3 µin	0.076 µm	Header	Liquid Crystal Polymer (LCP)	Gold	Shrouded - 4 Wall	2	0.039 in	1 mm	UL94 V-0	250 VAC 353 VDC	Solder	Surface Mount	Tin	Square		5.51 mm	0.217 in
Samtec Inc. T1M-02-GF-DV	Phosphor Bronze	3.3 A	Locking Ramp	Natural	All	2	Board to Cable/Wire	0.268 in	6.8 mm	85 °C	-55 °C	3 µin	0.076 µm	Male Pin	3 µin	0.076 µm	Header	Liquid Crystal Polymer (LCP)	Gold	Shrouded - 4 Wall	4	0.039 in	1 mm	UL94 V-0	250 VAC 353 VDC	Solder	Surface Mount	Gold	Square
Samtec Inc. T1M-02-GF-S-V-TR	Phosphor Bronze	3.3 A	Locking Ramp	Natural	All	1	Board to Cable/Wire	0.167 in	4.25 mm	85 °C	-55 °C	3 µin	0.076 µm	Male Pin	3 µin	0.076 µm	Header	Liquid Crystal Polymer (LCP)	Gold	Shrouded - 4 Wall	2	0.039 in	1 mm	UL94 V-0	250 VAC 353 VDC	Solder	Surface Mount	Gold	Square
