4DBL-02-006
ActiveTE Connectivity Raychem Cable Protection
4DBL-02-006=4DBL ASSEMBLY
Deep-Dive with AI
Search across all available documentation for this part.
4DBL-02-006
ActiveTE Connectivity Raychem Cable Protection
4DBL-02-006=4DBL ASSEMBLY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 4DBL-02-006 |
|---|---|
| Barrier Type | 3 Wall (Tri) |
| Bottom Termination | PC Pin |
| Color | Black |
| Current Rating (Amps) | 20 A |
| Material - Insulation | Nylon, Polyamide (PA) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Circuits | 2 |
| Number of Rows | 1 |
| Number of Wire Entries | 2 |
| Operating Temperature | 105 C |
| Pitch [x] | 8.26 mm |
| Pitch [x] | 0.325 in |
| Terminal Block Type | Barrier Block |
| Terminal Screw Finish | Zinc |
| Terminal Screw Material | Steel |
| Top Termination | Screws with Captive Plate |
| Voltage Rating | 150 VDC |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.79 | |
| 10 | $ 1.63 | |||
| 25 | $ 1.59 | |||
| 50 | $ 1.57 | |||
| 100 | $ 1.46 | |||
| 250 | $ 1.43 | |||
| 500 | $ 1.30 | |||
| 1000 | $ 1.17 | |||
| 5000 | $ 1.05 | |||
Description
General part information
BUCHANAN 4 Series Series

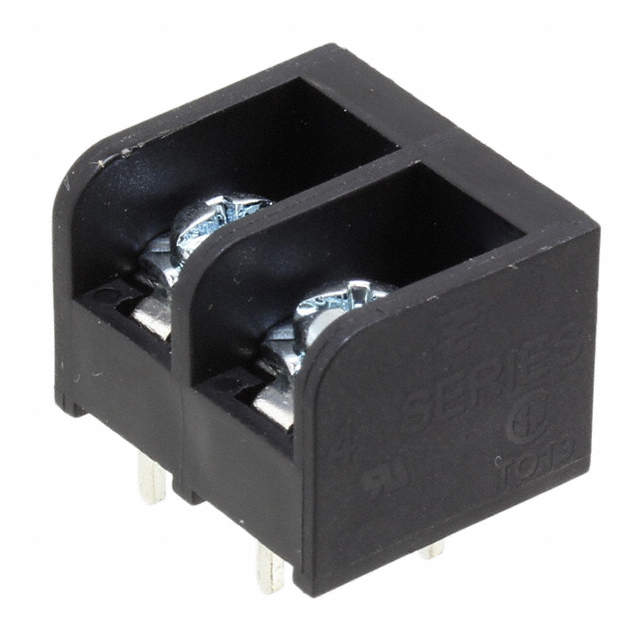

2 Position Barrier Strip, Tri-Barrier, Double Printed Circuit Pin Bottom Termination, Wire-to-Board, 8.26 mm [.325 in] Centerline, BUCHANAN 4 Series
