PK10M-080SP-SMT-DA

Active

1MM BOARD MOUNT SOCKET, VERTICAL AND RIGHT ANGLE, SMT, WITH PWR. GND. OPTION

Search across all available documentation for this part.

Active

1MM BOARD MOUNT SOCKET, VERTICAL AND RIGHT ANGLE, SMT, WITH PWR. GND. OPTION

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PK10M-080SP-SMT-DA	PK10M Series

Connector Type	Socket, Outer Shroud Contacts	Socket, Outer Shroud Contacts
Contact Finish	Gold	Gold
Contact Finish Thickness	Flash	Flash
Features	Solder Retention, Board Guide	Board Lock, Solder Retention, Board Guide
Height Above Board	-	0.264 - 0.421 in
Height Above Board	-	6.7 - 10.7 mm
Height Above Board [z]	6.95 mm	6.95 - 9.7 mm
Height Above Board [z]	0.274 in	0.274 - 0.382 in
Mounting Type	Surface Mount	Through Hole, Right Angle, Surface Mount, Surface Mount, Right Angle
Number of Positions	80	40 - 80
Number of Rows	2	2
Pitch [x]	0.039 in	0.039 in
Pitch [x]	1 mm	1 mm

CONN PLUG 40POS R/A GOLD

Part	Contact Finish	Pitch [x]	Pitch [x]	Mounting Type	Number of Rows	Features	Contact Finish Thickness	Height Above Board [z]	Height Above Board [z]	Number of Positions	Connector Type	Height Above Board	Height Above Board
3M PK10M-040PP-TH1-DA	Gold	0.039 in	1 mm	Through Hole, Right Angle	2	Board Lock, Solder Retention	Flash	0.303 in	7.7 mm	40
3M PK10M-080SP-SMT-DA	Gold	0.039 in	1 mm	Surface Mount	2	Board Guide, Solder Retention	Flash	0.274 in	6.95 mm	80	Outer Shroud Contacts, Socket
3M PK10M-080P-TH4-DA	Gold	0.039 in	1 mm	Through Hole, Right Angle	2	Board Lock, Solder Retention	Flash			80		0.421 in	10.7 mm
3M PK10M-060P-TH4-DA	Gold	0.039 in	1 mm	Through Hole, Right Angle	2	Board Lock, Solder Retention	Flash			60		0.421 in	10.7 mm
3M PK10M-050PP-TH2-DA	Gold	0.039 in	1 mm	Through Hole, Right Angle	2	Board Lock, Solder Retention	Flash			50		0.343 in	8.7 mm
3M PK10M-060PP-TH4-DA	Gold	0.039 in	1 mm	Through Hole, Right Angle	2	Board Lock, Solder Retention	Flash			60		0.421 in	10.7 mm
3M PK10M-060P-TH3-DA	Gold	0.039 in	1 mm	Through Hole, Right Angle	2	Board Lock, Solder Retention	Flash	0.382 in	9.7 mm	60
3M PK10M-040P-THR-DA	Gold	0.039 in	1 mm	Through Hole, Right Angle	2	Board Lock, Solder Retention	Flash			40		0.264 "	6.7 mm
3M PK10M-050PP-THR-DA	Gold	0.039 in	1 mm	Through Hole, Right Angle	2	Board Lock, Solder Retention	Flash			50		0.264 "	6.7 mm
3M PK10M-080PP-TH4-DA	Gold	0.039 in	1 mm	Through Hole, Right Angle	2	Board Lock, Solder Retention	Flash			80		0.421 in	10.7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

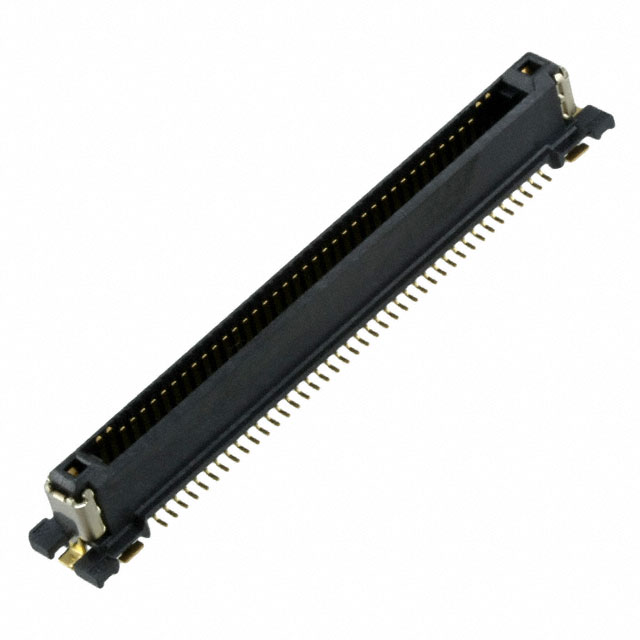

80 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold
