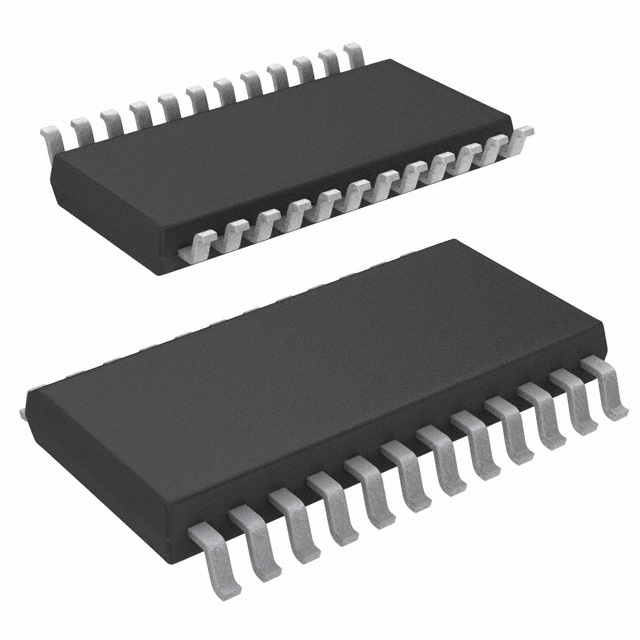

TB6586FG,EL,DRY

Obsolete

Toshiba Semiconductor and Storage

IC MOTOR CONTROLLER PAR 24SSOP

Search across all available documentation for this part.

Obsolete

Toshiba Semiconductor and Storage

IC MOTOR CONTROLLER PAR 24SSOP

Technical Specifications

Parameters and characteristics for this part

Specification	TB6586FG,EL,DRY

Applications	General Purpose
Function	Controller - Commutation, Direction Management
Interface	Parallel
Motor Type - AC, DC	Brushless DC (BLDC)
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 °C
Output Configuration	Half Bridge (3)
Package / Case	24-SOP
Package / Case [custom]	6 mm
Package / Case [x]	0.236 in
Supplier Device Package	24-SSOP
Technology	Bi-CMOS
Voltage - Supply [Max]	16.5 V
Voltage - Supply [Min]	6.5 VDC

Part	Supplier Device Package	Applications	Technology	Output Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Package / Case [custom]	Package / Case	Package / Case [x]	Interface	Motor Type - AC, DC	Function
Toshiba Semiconductor and Storage TB6586FG,EL,DRY	24-SSOP	General Purpose	Bi-CMOS	Half Bridge (3)	-30 °C	85 °C	16.5 V	6.5 VDC	Surface Mount	6 mm	24-SOP	0.236 in	Parallel	Brushless DC (BLDC)	Controller - Commutation Direction Management
Toshiba Semiconductor and Storage TB6586BFG,EL,DRY	24-SSOP	General Purpose	Bi-CMOS	Half Bridge (3)	-30 °C	85 °C	16.5 V	6.5 VDC	Surface Mount	6 mm	24-SOP	0.236 in	Parallel	Brushless DC (BLDC)	Controller - Commutation Direction Management
Toshiba Semiconductor and Storage TB6586AFG,EL,DRY	24-SSOP	General Purpose	Bi-CMOS	Half Bridge (3)	-30 °C	85 °C	16.5 V	6.5 VDC	Surface Mount	6 mm	24-SOP	0.236 in	Parallel	Brushless DC (BLDC)	Controller - Commutation Direction Management
Toshiba Semiconductor and Storage TB6586FG,C8,EL,HZ	24-SSOP	General Purpose	Bi-CMOS	Half Bridge (3)	-30 °C	115 °C	16.5 V	6.5 VDC	Surface Mount	6 mm	24-SOP	0.236 in	Parallel	Brushless DC (BLDC)	Controller - Commutation Direction Management
