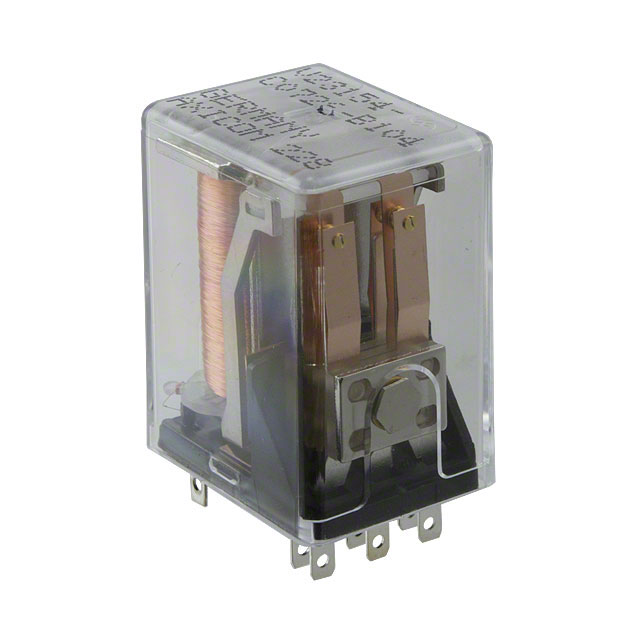

1393807-6

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE DPDT 2A 48V

Deep-Dive with AI

Search across all available documentation for this part.

1393807-6

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE DPDT 2A 48V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1393807-6

Coil Current	15 mA
Coil Resistance	3.2 kOhms
Coil Type	Non Latching
Coil Voltage	48 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver (Ag), Gold (Au)
Contact Rating (Current)	2 A
Load - Max Switching	300 W, 250 VA
Mounting Type	Socketable
Must Operate Voltage	23 VDC
Operate Time	7.5 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	3 ms
Switching Voltage	150 VDC, 125 VAC
Termination Style	Plug In

1393807 Series

Part	Contact Rating (Current)	Switching Voltage	Mounting Type	Contact Material	Coil Current	Relay Type	Operate Time	Must Operate Voltage	Coil Type	Load - Max Switching	Coil Voltage	Contact Form	Coil Resistance	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Release Time
TE Connectivity Potter & Brumfield Relays 3-1393807-7	2 A	125 VAC 150 VDC	Socketable	Gold (Au) Silver (Ag)	34.3 mA	General Purpose	7.5 ms	15 VDC	Non Latching	250 VA 300 W	24 VDC	4PDT (4 Form C)	700 Ohms	-40 °C	70 °C	Plug In	3 ms
TE Connectivity Potter & Brumfield Relays 1393807-6	2 A	125 VAC 150 VDC	Socketable	Gold (Au) Silver (Ag)	15 mA	General Purpose	7.5 ms	23 VDC	Non Latching	250 VA 300 W	48 VDC	DPDT (2 Form C)	3.2 kOhms	-40 °C	70 °C	Plug In	3 ms
TE Connectivity Potter & Brumfield Relays 4-1393807-0	2 A	125 VAC 150 VDC	Socketable	Gold (Au) Silver (Ag)	34.3 mA	General Purpose	7.5 ms		Non Latching	250 VA 300 W	24 VDC		700 Ohms	-40 °C	70 °C	Plug In	3 ms
TE Connectivity Potter & Brumfield Relays 1-1393807-6	2 A	125 VAC 150 VDC	Socketable	Gold (Au) Silver (Ag)	7.3 mA	General Purpose	7.5 ms	49 VDC	Non Latching	250 VA 300 W	110 VDC	DPDT (2 Form C)	15 kOhms	-40 °C	70 °C	Plug In	3 ms
TE Connectivity Potter & Brumfield Relays 7-1393807-5	2 A	125 VAC 150 VDC	Socketable	Gold (Au) Silver (Ag)	41 mA	General Purpose	7.5 ms	15.2 VDC	Non Latching		16 VDC	4PDT (4 Form C)	390 Ohms	-40 °C	70 °C	Plug In	3 ms
TE Connectivity Potter & Brumfield Relays 3-1393807-2	2 A	125 VAC 150 VDC	Socketable	Gold (Au) Silver (Ag)		General Purpose	7.5 ms		Non Latching	250 VA 300 W		4PDT (4 Form C)		-40 °C	70 °C	Plug In	3 ms
TE Connectivity Potter & Brumfield Relays 6-1393807-7	2 A	125 VAC 150 VDC	Socketable	Gold (Au) Silver (Ag)		General Purpose	7.5 ms		Non Latching	250 VA 300 W				-40 °C	70 °C	Plug In	3 ms
TE Connectivity Potter & Brumfield Relays 1393807-7	200 mA	30 VAC 36 VDC	Socketable	Gold (Au)	15 mA	General Purpose	7.5 ms	23 VDC	Non Latching		48 VDC	DPDT (2 Form C)	3.2 kOhms	-40 °C	70 °C	Plug In	3 ms
TE Connectivity Potter & Brumfield Relays 1393807-8	2 A	125 VAC 150 VDC	Socketable	Gold (Au) Silver (Ag)	15 mA	General Purpose	7.5 ms	30 VDC	Non Latching	250 VA 300 W	48 VDC	DPDT (2 Form C)	3.2 kOhms	-40 °C	70 °C	Plug In	3 ms
TE Connectivity Potter & Brumfield Relays 7-1393807-6	2 A	125 VAC 150 VDC	Socketable	Gold (Au) Silver (Ag)	41 mA	General Purpose	7.5 ms		Non Latching	250 VA 300 W	16 VDC		390 Ohms	-40 °C	70 °C	Plug In	3 ms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 125.11

Description

General part information

1393807 Series

General Purpose Relay DPDT (2 Form C) Socketable

Documents

Technical documentation and resources

No documents available
