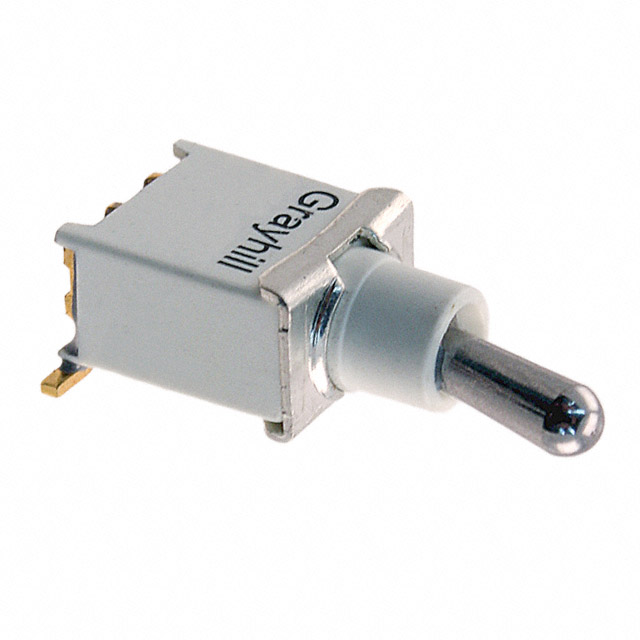

34EWMSP12M6RT
ActiveGrayhill Inc.
SWITCH TOGGLE SPDT 0.4VA 20V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
34EWMSP12M6RT
ActiveGrayhill Inc.
SWITCH TOGGLE SPDT 0.4VA 20V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 34EWMSP12M6RT | 34EWMSP Series |
|---|---|---|
| Actuator Length | - | 6.7 mm |
| Actuator Length [x] | 6.1 mm | 6.1 - 10.8 mm |
| Actuator Material | Brass, Chrome Plated | Brass, Chrome Plated |
| Actuator Type | Standard Round | Standard Round |
| Bushing Thread | Unthreaded | Unthreaded |
| Circuit | SPDT | SPDT |
| Current Rating (Amps) | 0.4 VA | 0.4 VA |
| Electrical Life | 30000 Cycles | 30000 Cycles |
| Features | Epoxy Sealed Terminals | Epoxy Sealed Terminals |
| Illumination | Non-Illuminated | Non-Illuminated |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle, Vertical, Surface Mount, Right Angle |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Switch Function | On-On | On-Mom, On-On, On-Off-On |
| Termination Style | Gull Wing | Gull Wing |
| Voltage Rating - AC | 20 V | 20 V |
| Voltage Rating - DC | 20 V | 20 V |
34EWMSP Series
SWITCH TOGGLE SPDT 0.4VA 20V
| Part | Electrical Life | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - DC | Voltage Rating - AC | Switch Function | Ingress Protection | Actuator Length [x] | Features | Illumination | Mounting Type | Circuit | Actuator Type | Bushing Thread | Current Rating (Amps) | Termination Style | Actuator Material | Actuator Length [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Grayhill Inc. 34EWMSP22M6RT | 30000 Cycles | -30 ░C | 85 °C | 20 V | 20 V | On-Mom | IP67 - Dust Tight, Waterproof | 6.1 mm | Epoxy Sealed Terminals | Non-Illuminated | Surface Mount, Right Angle | SPDT | Standard Round | Unthreaded | 0.4 VA | Gull Wing | Brass, Chrome Plated | |
Grayhill Inc. 34EWMSP12M6RT | 30000 Cycles | -30 ░C | 85 °C | 20 V | 20 V | On-On | IP67 - Dust Tight, Waterproof | 6.1 mm | Epoxy Sealed Terminals | Non-Illuminated | Surface Mount, Right Angle | SPDT | Standard Round | Unthreaded | 0.4 VA | Gull Wing | Brass, Chrome Plated | |
Grayhill Inc. 34EWMSP31M6RT | 30000 Cycles | -30 ░C | 85 °C | 20 V | 20 V | On-Off-On | IP67 - Dust Tight, Waterproof | 10.8 mm | Epoxy Sealed Terminals | Non-Illuminated | Surface Mount, Right Angle | SPDT | Standard Round | Unthreaded | 0.4 VA | Gull Wing | Brass, Chrome Plated | |
Grayhill Inc. 34EWMSP33M6RT | 30000 Cycles | -30 ░C | 85 °C | 20 V | 20 V | On-Off-On | IP67 - Dust Tight, Waterproof | 10.8 mm | Epoxy Sealed Terminals | Non-Illuminated | Surface Mount, Right Angle | SPDT | Standard Round | Unthreaded | 0.4 VA | Gull Wing | Brass, Chrome Plated | |
Grayhill Inc. 34EWMSP34M7RT | 30000 Cycles | -30 ░C | 85 °C | 20 V | 20 V | On-Off-On | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Non-Illuminated | Right Angle, Surface Mount, Vertical | SPDT | Standard Round | Unthreaded | 0.4 VA | Gull Wing | Brass, Chrome Plated | 6.7 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.96 | |
| 10 | $ 5.37 | |||
| 25 | $ 5.10 | |||
| 50 | $ 4.89 | |||
| 100 | $ 4.73 | |||
| 250 | $ 4.49 | |||
| Digi-Reel® | 1 | $ 5.96 | ||
| 10 | $ 5.37 | |||
| 25 | $ 5.10 | |||
| 50 | $ 4.89 | |||
| 100 | $ 4.73 | |||
| 250 | $ 4.49 | |||
| Tape & Reel (TR) | 500 | $ 3.33 | ||
Description
General part information
34EWMSP Series
Toggle Switch SPDT Surface Mount, Right Angle
