34EWMSP22M6RT

Active

Grayhill Inc.

SWITCH TOGGLE SPDT 0.4VA 20V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH TOGGLE SPDT 0.4VA 20V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	500	$ 4.15

General part information

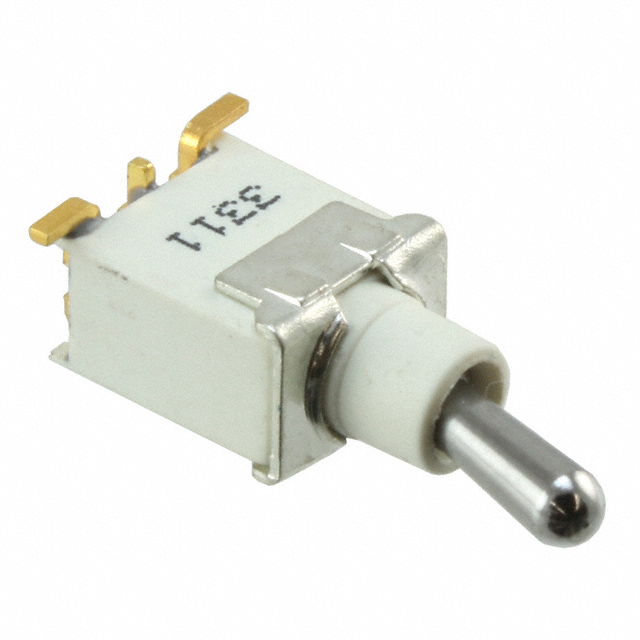

Toggle Switch SPDT Surface Mount, Right Angle

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	34EWMSP22M6RT	34EWMSP Series

Actuator Length	-	6.7 mm
Actuator Length [x]	6.1 mm	6.1 - 10.8 mm
Actuator Material	Brass, Chrome Plated	Brass, Chrome Plated
Actuator Type	Standard Round	Standard Round
Bushing Thread	Unthreaded	Unthreaded
Circuit	SPDT	SPDT
Current Rating (Amps)	0.4 VA	0.4 VA
Electrical Life	30000 Cycles	30000 Cycles
Features	Epoxy Sealed Terminals	Epoxy Sealed Terminals
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle, Vertical, Surface Mount, Right Angle
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Switch Function	On-Mom	On-Mom, On-On, On-Off-On
Termination Style	Gull Wing	Gull Wing
Voltage Rating - AC	20 V	20 V
Voltage Rating - DC	20 V	20 V

SWITCH TOGGLE SPDT 0.4VA 20V

Part	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Voltage Rating - AC	Switch Function	Ingress Protection	Actuator Length [x]	Features	Illumination	Mounting Type	Circuit	Actuator Type	Bushing Thread	Current Rating (Amps)	Termination Style	Actuator Material	Actuator Length [z]
Grayhill Inc. 34EWMSP22M6RT	30000 Cycles	-30 ░C	85 °C	20 V	20 V	On-Mom	IP67 - Dust Tight, Waterproof	6.1 mm	Epoxy Sealed Terminals	Non-Illuminated	Surface Mount, Right Angle	SPDT	Standard Round	Unthreaded	0.4 VA	Gull Wing	Brass, Chrome Plated
Grayhill Inc. 34EWMSP12M6RT	30000 Cycles	-30 ░C	85 °C	20 V	20 V	On-On	IP67 - Dust Tight, Waterproof	6.1 mm	Epoxy Sealed Terminals	Non-Illuminated	Surface Mount, Right Angle	SPDT	Standard Round	Unthreaded	0.4 VA	Gull Wing	Brass, Chrome Plated
Grayhill Inc. 34EWMSP31M6RT	30000 Cycles	-30 ░C	85 °C	20 V	20 V	On-Off-On	IP67 - Dust Tight, Waterproof	10.8 mm	Epoxy Sealed Terminals	Non-Illuminated	Surface Mount, Right Angle	SPDT	Standard Round	Unthreaded	0.4 VA	Gull Wing	Brass, Chrome Plated
Grayhill Inc. 34EWMSP33M6RT	30000 Cycles	-30 ░C	85 °C	20 V	20 V	On-Off-On	IP67 - Dust Tight, Waterproof	10.8 mm	Epoxy Sealed Terminals	Non-Illuminated	Surface Mount, Right Angle	SPDT	Standard Round	Unthreaded	0.4 VA	Gull Wing	Brass, Chrome Plated
Grayhill Inc. 34EWMSP34M7RT	30000 Cycles	-30 ░C	85 °C	20 V	20 V	On-Off-On	IP67 - Dust Tight, Waterproof		Epoxy Sealed Terminals	Non-Illuminated	Right Angle, Surface Mount, Vertical	SPDT	Standard Round	Unthreaded	0.4 VA	Gull Wing	Brass, Chrome Plated	6.7 mm
