PI6LC48P0301AZHIE
ObsoleteDiodes Inc
3 OUTPUT LVPECL NETWORKING CLOCK GENERATOR
Deep-Dive with AI
Search across all available documentation for this part.
PI6LC48P0301AZHIE
ObsoleteDiodes Inc
3 OUTPUT LVPECL NETWORKING CLOCK GENERATOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PI6LC48P0301AZHIE |
|---|---|
| Differential - Input:Output | No/Yes |
| Frequency - Max [Max] | 680 MHz |
| Input | LVTTL, Crystal, LVCMOS |
| Main Purpose | Ethernet |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | LVPECL |

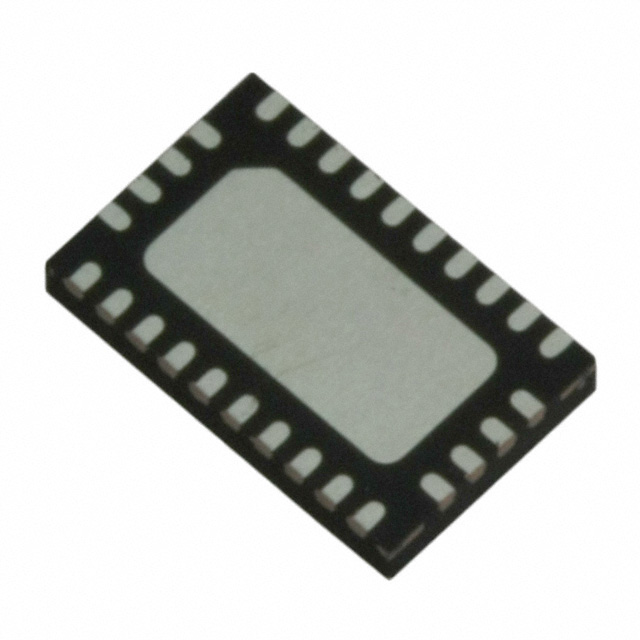

| Package / Case | 28-VFQFN Exposed Pad |
| PLL | Yes with Bypass |
| Ratio - Input:Output [custom] | 2:3 |
| Supplier Device Package | 28-TQFN |
| Supplier Device Package [x] | 3.5 |
| Supplier Device Package [y] | 5.5 |
| Voltage - Supply [Max] | 2.625 V, 3.465 V |
| Voltage - Supply [Min] | 2.375 V, 3.135 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PI6LC48P0301A Series
3 Output LVPECL Networking Clock Generator
Documents
Technical documentation and resources
