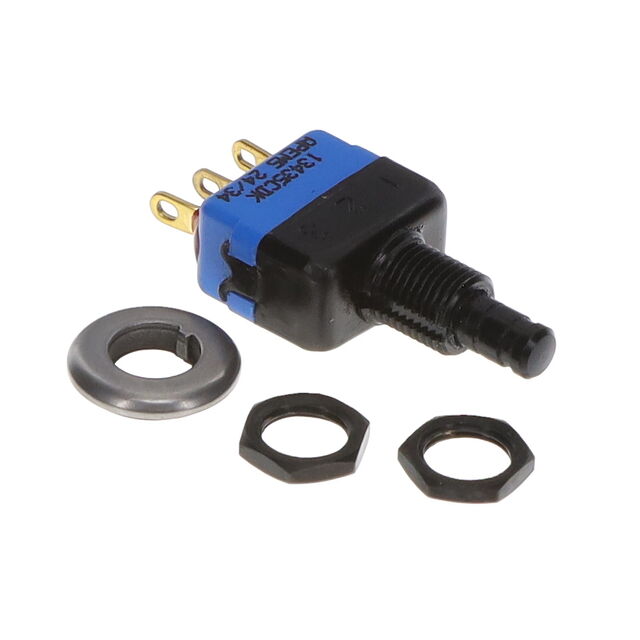

13435CDGK

Active

APEM Inc.

SWITCH PUSH SPDT 0.1A 30V

Search across all available documentation for this part.

Active

APEM Inc.

SWITCH PUSH SPDT 0.1A 30V

Technical Specifications

Parameters and characteristics for this part

Specification	13435CDGK

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	100 mA
Electrical Life	50000 Cycles
Ingress Protection	Environment Sealed
Mechanical Life	150000 Cycles
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - DC	30 V

SWITCH PUSH SPDT 0.1A 30V

Part	Mounting Type	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Current Rating (Amps)	Circuit	Switch Function	Color - Actuator/Cap	Actuator Type	Mechanical Life	Electrical Life	Voltage Rating - DC	Actuator Marking	Type	Panel Cutout Dimensions [diameter]
APEM Inc. 13435CDGK	Panel Mount, Rear	Environment Sealed	85 °C	-40 °C	Solder Lug	100 mA	SPDT	On-Mom	Black	Plunger for Cap	150000 Cycles	50000 Cycles	30 V	No Marking	Standard	6.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPDT Standard Panel Mount, Rear
