FD900R12IP4DBOSA1

Active

Infineon Technologies

THE FD900R12IP4D IS A CHOPPER IGBT4 - P4 MODULE IN A PRIMEPACK™ 2 HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 900 A.

Search across all available documentation for this part.

Active

Infineon Technologies

THE FD900R12IP4D IS A CHOPPER IGBT4 - P4 MODULE IN A PRIMEPACK™ 2 HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 900 A.

Technical Specifications

Parameters and characteristics for this part

Specification	FD900R12IP4DBOSA1

Configuration	Single Chopper
Current - Collector (Ic) (Max) [Max]	900 A
Current - Collector Cutoff (Max) [Max]	5 mA
Input	Standard
Input Capacitance (Cies) @ Vce	54 nF
Mounting Type	Chassis Mount
NTC Thermistor	True
Package / Case	Module
Power - Max [Max]	5100 W
Supplier Device Package	Module
Vce(on) (Max) @ Vge, Ic	2.05 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

Part	Current - Collector Cutoff (Max) [Max]	Configuration	Current - Collector (Ic) (Max) [Max]	Input Capacitance (Cies) @ Vce	Supplier Device Package	NTC Thermistor	Power - Max [Max]	Mounting Type	Package / Case	Input	Vce(on) (Max) @ Vge, Ic	Voltage - Collector Emitter Breakdown (Max) [Max]
Infineon Technologies FD900R12IP4DBOSA1	5 mA	Single Chopper	900 A	54 nF	Module		5100 W	Chassis Mount	Module	Standard	2.05 V	1200 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

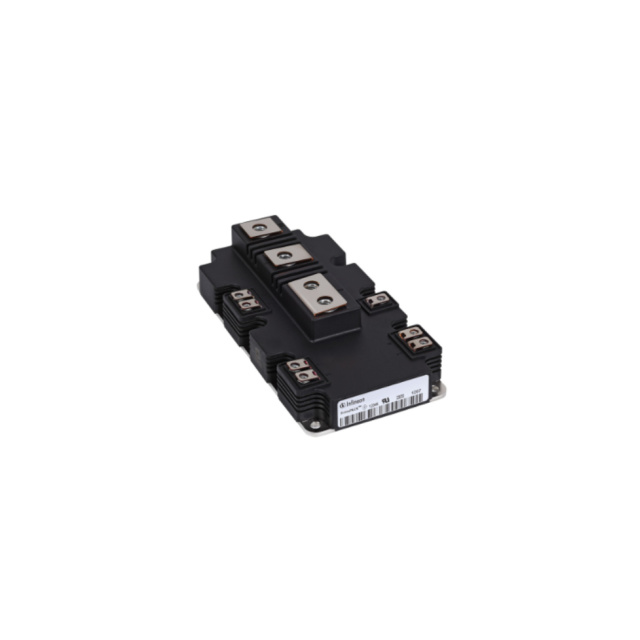

PrimePACK™2 1200 V, 900 A chopperIGBT modulewith Trench/Fieldstop IGBT4, enlarged Emitter Controlled 4 diode and NTC.
