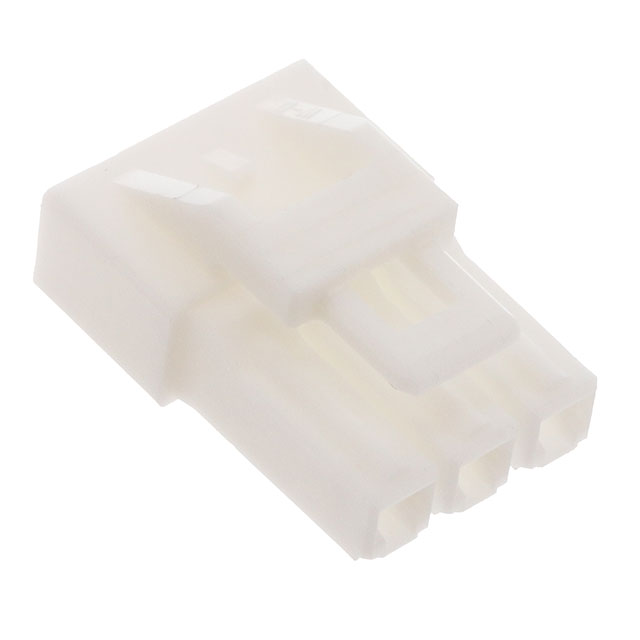

YLP-03V

Active

JST Sales America Inc.

CONN PLUG HSG 3POS 4.50MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsJST Prefix Suffix Chart Datasheet

YLP-03V

Active

JST Sales America Inc.

CONN PLUG HSG 3POS 4.50MM

Deep-Dive with AI

DocumentsJST Prefix Suffix Chart Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	YLP-03V	YLP Series

Color	White	White
Connector Type	Plug	Plug
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Latch Lock	Latch Lock
Insulation Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	-	1 - 21
Number of Positions	-	16
Number of Rows	1	1 - 3
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-25 °C	-25 °C
Pitch [x]	0.177 in	0.177 in
Pitch [x]	4.5 mm	4.5 mm

YLP Series

CONN PLUG HSG 8POS 4.50MM

Part	Color	Contact Termination	Fastening Type	Note	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Connector Type	Pitch [x]	Pitch [x]	Contact Type	Mounting Type	Number of Positions
JST Sales America Inc. YLP-08V	White	Crimp	Latch Lock	Contacts Not Included	Polyamide (PA66), Nylon 6/6	90 °C	-25 °C	2	Plug	0.177 in	4.5 mm	Female Socket	Free Hanging (In-Line)	8
JST Sales America Inc. YLP-15V	White	Crimp	Latch Lock	Contacts Not Included	Polyamide (PA66), Nylon 6/6	90 °C	-25 °C	3	Plug	0.177 in	4.5 mm	Female Socket	Free Hanging (In-Line)	15
JST Sales America Inc. YLP-09V	White	Crimp	Latch Lock	Contacts Not Included	Polyamide (PA66), Nylon 6/6	90 °C	-25 °C	3	Plug	0.177 in	4.5 mm	Female Socket	Free Hanging (In-Line)	9
JST Sales America Inc. YLP-21V	White	Crimp	Latch Lock	Contacts Not Included	Polyamide (PA66), Nylon 6/6	90 °C	-25 °C	3	Plug	0.177 in	4.5 mm	Female Socket	Free Hanging (In-Line)	21
JST Sales America Inc. YLP-02V	White	Crimp	Latch Lock	Contacts Not Included	Polyamide (PA66), Nylon 6/6	90 °C	-25 °C	1	Plug	0.177 in	4.5 mm	Female Socket	Free Hanging (In-Line)	2
JST Sales America Inc. YLP-01V	White	Crimp	Latch Lock	Contacts Not Included	Polyamide (PA66), Nylon 6/6	90 °C	-25 °C	1	Plug			Female Socket	Free Hanging (In-Line)	1
JST Sales America Inc. YLP-06V	White	Crimp	Latch Lock	Contacts Not Included	Polyamide (PA66), Nylon 6/6	90 °C	-25 °C	2	Plug	0.177 in	4.5 mm	Female Socket	Free Hanging (In-Line)	6
JST Sales America Inc. YLP-12V	White	Crimp	Latch Lock	Contacts Not Included	Polyamide (PA66), Nylon 6/6	90 °C	-25 °C	3	Plug	0.177 in	4.5 mm	Female Socket	Free Hanging (In-Line)	12
JST Sales America Inc. YLP-03V	White	Crimp	Latch Lock	Contacts Not Included	Polyamide (PA66), Nylon 6/6	90 °C	-25 °C	1	Plug	0.177 in	4.5 mm	Female Socket	Free Hanging (In-Line)
JST Sales America Inc. YLP-12VA	White	Crimp	Latch Lock	Contacts Not Included	Polyamide (PA66), Nylon 6/6	90 °C	-25 °C	2	Plug	0.177 in	4.5 mm	Female Socket	Free Hanging (In-Line)	12

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.22
		10	$ 0.18
		25	$ 0.16
		50	$ 0.15
		100	$ 0.14
		250	$ 0.12
		500	$ 0.12
		1000	$ 0.10
		2500	$ 0.09

Description

General part information

YLP Series

3 Rectangular Connectors - Housings Plug White 0.177" (4.50mm)

Documents

Technical documentation and resources

JST Prefix Suffix Chart

Datasheet
