27TCSP00500
ActiveEssentra Access Solutions

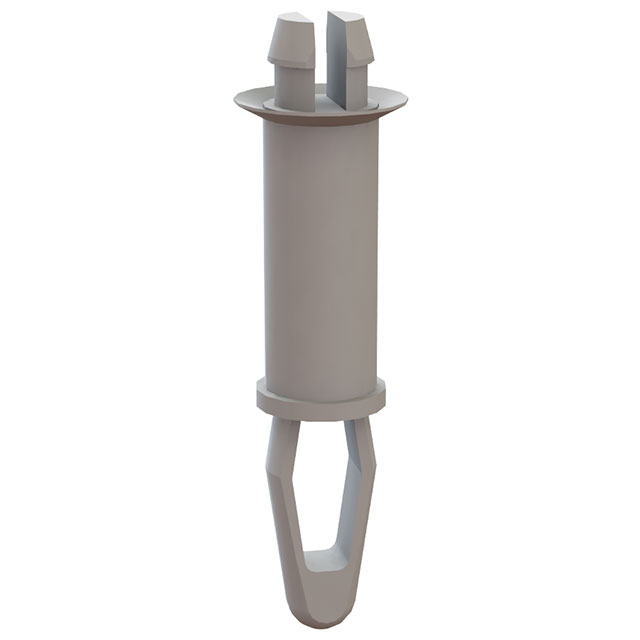

PCB SUPPORT, SNAP FIT, .156/.156
Deep-Dive with AI
Search across all available documentation for this part.
27TCSP00500
ActiveEssentra Access Solutions
PCB SUPPORT, SNAP FIT, .156/.156
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 27TCSP00500 |
|---|---|
| Between Board Height | 0.5 in |
| Between Board Height | 12.7 mm |
| Holding Type | Snap Lock |
| Material | Nylon |
| Mounting Hole Diameter [diameter] | 3.96 mm |
| Mounting Hole Diameter [diameter] | 0.15625 in |
| Mounting Hole Diameter [diameter] | 0.156 in |
| Mounting Panel Thickness | 0.063 in |
| Mounting Panel Thickness | 1.59 mm |
| Mounting Type | Snap Lock |
| Support Hole Diameter [diameter] | 0.156 in |
| Support Hole Diameter [diameter] | 3.96 mm |
| Support Panel Thickness | 1.59 mm |
| Support Panel Thickness | 0.063 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.20 | |
| 5 | $ 0.17 | |||
| 10 | $ 0.14 | |||
| 25 | $ 0.14 | |||
| 50 | $ 0.13 | |||
| 100 | $ 0.12 | |||
| 250 | $ 0.11 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.10 | |||
Description
General part information
27TCSP Series
Board Support Snap Lock / Snap Lock Nylon 0.500" (12.70mm)
Documents
Technical documentation and resources
No documents available
