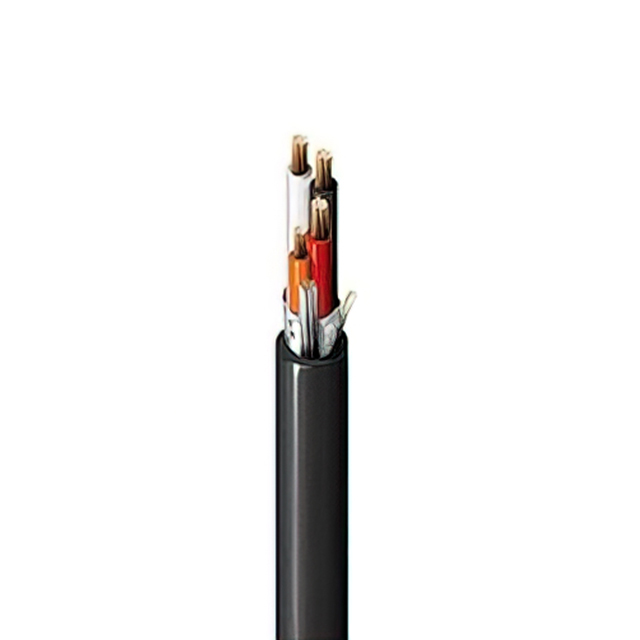

1085A 0105000

Active

Belden Inc.

CABLE 37COND 20AWG/22AWG

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 37COND 20AWG/22AWG

Technical Specifications

Parameters and characteristics for this part

Specification	1085A 0105000

Cable Type	Multi-Triad
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand	30, 7 Strands, 28 AWG (2)
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	0.771 in
Jacket (Insulation) Diameter [diameter]	19.58 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.6 mm
Jacket (Insulation) Thickness	0.063 in
Jacket Color	Black
Number of Conductors	37
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	22, 20

CABLE 37COND 20AWG/22AWG

Part	Ratings	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Material	Conductor Insulation	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Shield Coverage	Voltage	Shield Type	Conductor Strand	Features	Number of Conductors	Wire Gauge	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material
Belden Inc. 1085A 0105000	UL Style 2464	0.771 in	19.58 mm	Aluminum	Poly-Vinyl Chloride (PVC)	Multi-Triad	1.6 mm	0.063 in	Copper, Bare	100 %	300 V	Foil	7 Strands, 28 AWG (2), 30	Drain Wire, Rip Cord	37	20, 22	Black	-30 ░C	105 ░C	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 10.02

General part information

37 (12 Triad) Conductor Multi-Triad Cable Black 20 AWG, 22 AWG Foil 5000' (1524.0m)
