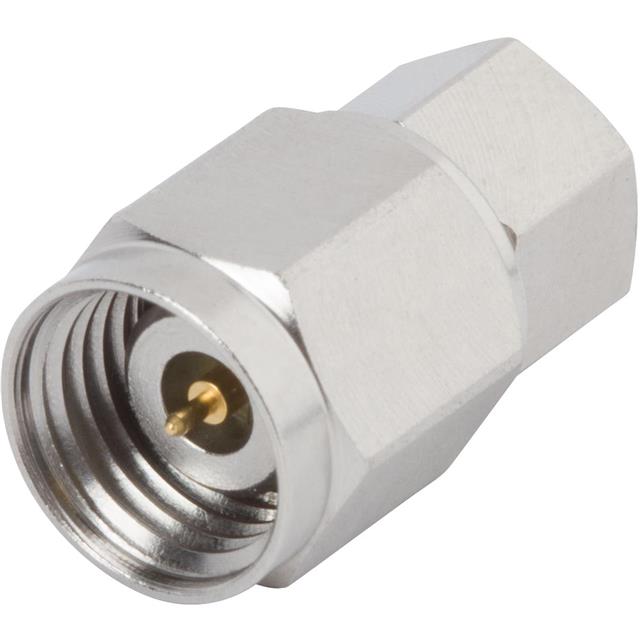

SF1611-60001

Active

Amphenol SV Microwave

2.4MM MALE CONNECTOR FOR .047 CABLE /INDIVIDUAL WITH BULK PIECE PARTS - TRAY (PACK FILL QTY: 50) - (BULK PIECE PARTS: 1X BODY IN

Search across all available documentation for this part.

Active

Amphenol SV Microwave

2.4MM MALE CONNECTOR FOR .047 CABLE /INDIVIDUAL WITH BULK PIECE PARTS - TRAY (PACK FILL QTY: 50) - (BULK PIECE PARTS: 1X BODY IN

Technical Specifications

Parameters and characteristics for this part

Part	Shield Termination	Mounting Type	Housing Color	Impedance	Frequency - Max [Max]	Dielectric Material	Center Contact Material	Cable Group	Cable Group	Connector Type	Center Contact Plating	Number of Ports	Connector Style	Connector Style	Connector Style	Body Material	Features	Mounting Feature	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles
Amphenol SV Microwave SF1611-60003	Clamp	Free Hanging (In-Line)	Silver	50 Ohms	50 GHz	Polyetherimide (PEI)	Beryllium Copper	0.085 in	RG-405	Male Pin Plug	Gold	1	OS-50	2.4 mm	APC-2.4	Stainless Steel
Amphenol SV Microwave SF1611-60001	Clamp	Free Hanging (In-Line)	Silver	50 Ohms	50 GHz	Polyetherimide (PEI)	Beryllium Copper	0.047 in	Flexible	Male Pin Plug	Gold	1	OS-50	2.4 mm	APC-2.4	Stainless Steel
Amphenol SV Microwave SF1611-60021-2S	Screw	Surface Mount	Silver	50 Ohms	50 GHz		Beryllium Copper			Male Pin Plug	Gold		OS-50	2.4 mm	APC-2.4	Stainless Steel	Mounting Hardware	Flange	Compression	-65 ░C	165 °C	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.4mm (APC-2.4, OS-50) Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line)
