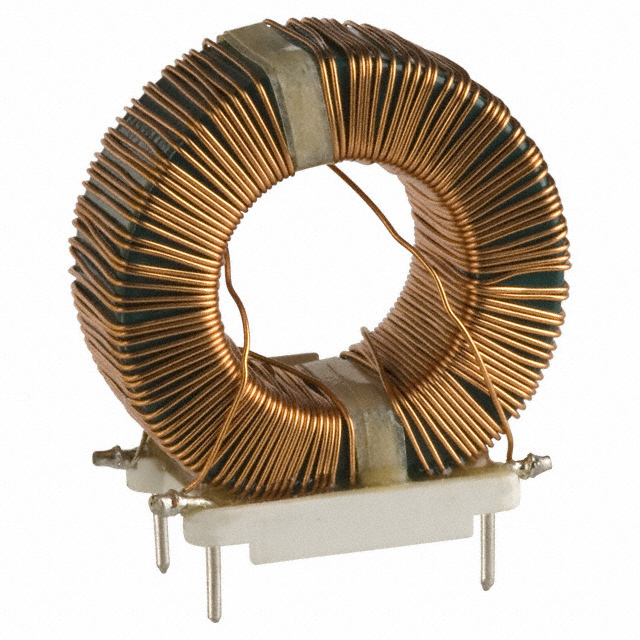

8117-RC
ActiveBourns Inc.
CMC 36MH 2.9A 2LN TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8117-RC
ActiveBourns Inc.
CMC 36MH 2.9A 2LN TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 8117-RC |
|---|---|
| Current Rating (Max) [Max] | 2.9 A |
| DC Resistance (DCR) (Max) [Max] | 300 mOhm |
| Height (Max) [Max] | 1.65 " |
| Height (Max) [Max] | 41.91 mm |
| Inductance @ Frequency | 36 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 4 Lead |
| Package / Case | Vertical |
| Size / Dimension [x] | 39.37 mm |
| Size / Dimension [x] | 1.55 in |
| Size / Dimension [y] | 20.32 mm |
| Size / Dimension [y] | 0.8 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 128 | $ 8.37 | |
Description
General part information
8117 Series
36 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 2.9A DCR 300mOhm
