Q-2H01M0001012i

Active

Amphenol Custom Cable

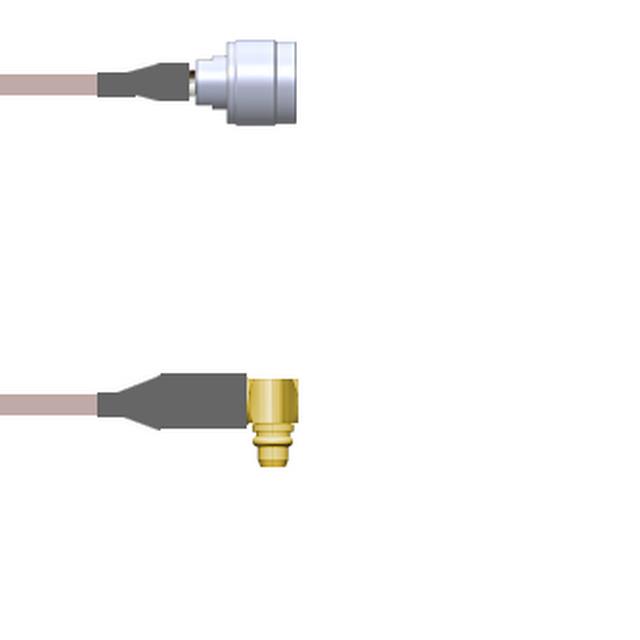

CBL ASSY MMCX-NTYPE PLUG-PLG 12"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2H01M0001012i

Active

Amphenol Custom Cable

CBL ASSY MMCX-NTYPE PLUG-PLG 12"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2H01M0001012i

1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-178
Color	Copper
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	12 "
Length	304.8 mm
Overall Impedance	50 Ohms
Style	MMCX to N-Type

Q-2H01M0 Series

Part	Cable Type	1st Connector Mounting Type	2nd Connector	1st Contact Gender	Style	Length	Length	2nd Connector Mounting Type	Overall Impedance	Color	Frequency - Max [Max]	Features	2nd Contact Gender	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-2H01M0001003i	RG-178	Free Hanging (In-Line)	N-Type Plug	Male	MMCX to N-Type	3 in	76.2 mm	Free Hanging (In-Line)	50 Ohms	Copper	6000 MHz	Shielded	Male
Amphenol Custom Cable Q-2H01M0001072i	RG-178	Free Hanging (In-Line)	N-Type Plug	Male	MMCX to N-Type	72 in	1.8 m	Free Hanging (In-Line)	50 Ohms	Copper	6000 MHz	Shielded	Male	6 ft
Amphenol Custom Cable Q-2H01M0001012i	RG-178	Free Hanging (In-Line)	N-Type Plug	Male	MMCX to N-Type	12 "	304.8 mm	Free Hanging (In-Line)	50 Ohms	Copper	6000 MHz	Shielded	Male
Amphenol Custom Cable Q-2H01M0001036i	RG-178	Free Hanging (In-Line)	N-Type Plug	Male	MMCX to N-Type	36 in	91.44 cm	Free Hanging (In-Line)	50 Ohms	Copper	6000 MHz	Shielded	Male
Amphenol Custom Cable Q-2H01M0001.75M	RG-178	Free Hanging (In-Line)	N-Type Plug	Male	MMCX to N-Type	29.53 "	750 mm	Free Hanging (In-Line)	50 Ohms	Copper	6000 MHz	Shielded	Male
Amphenol Custom Cable Q-2H01M0001001M	RG-178	Free Hanging (In-Line)	N-Type Plug	Male	MMCX to N-Type	39.4 in	1 m	Free Hanging (In-Line)	50 Ohms	Copper	6000 MHz	Shielded	Male	3.3 ft
Amphenol Custom Cable Q-2H01M0001018i	RG-178	Free Hanging (In-Line)	N-Type Plug	Male	MMCX to N-Type			Free Hanging (In-Line)	50 Ohms	Copper	6000 MHz	Shielded	Male		457.2 mm	457.2 mm
Amphenol Custom Cable Q-2H01M0001084i	RG-178	Free Hanging (In-Line)	N-Type Plug	Male	MMCX to N-Type	84 in	2.1 m	Free Hanging (In-Line)	50 Ohms	Copper	6000 MHz	Shielded	Male	7 ft
Amphenol Custom Cable Q-2H01M0001108i	RG-178	Free Hanging (In-Line)	N-Type Plug	Male	MMCX to N-Type	108 in	2.7 m	Free Hanging (In-Line)	50 Ohms	Copper	6000 MHz	Shielded	Male	9 ft
Amphenol Custom Cable Q-2H01M0001024i	RG-178	Free Hanging (In-Line)	N-Type Plug	Male	MMCX to N-Type	24 "	609.6 mm	Free Hanging (In-Line)	50 Ohms	Copper	6000 MHz	Shielded	Male

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 77.40
		25	$ 75.96
		50	$ 74.51
		100	$ 73.06
		250	$ 71.62

Description

General part information

Q-2H01M0 Series

Cable Assembly Coaxial MMCX to N-Type RG-178 12.00" (304.80mm)

Documents

Technical documentation and resources

No documents available
