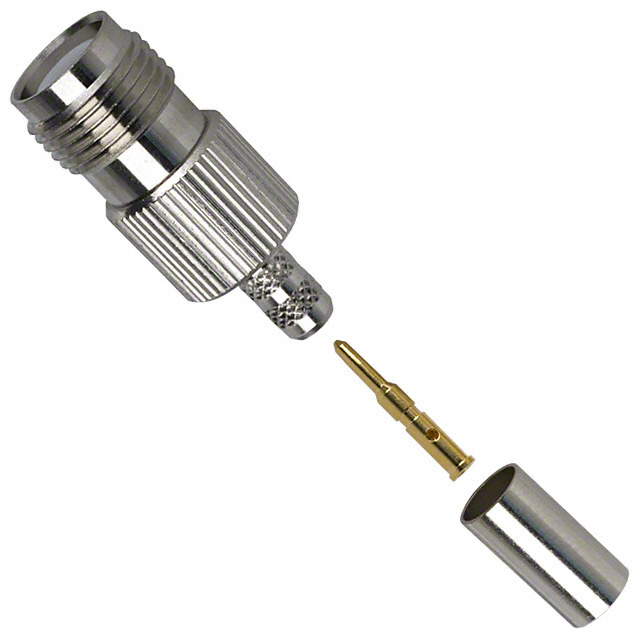

122122RP

Active

Amphenol RF

CONN RP-TNC JACK STR 50OHM CRIMP

Search across all available documentation for this part.

Active

Amphenol RF

CONN RP-TNC JACK STR 50OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	122122RP

Body Finish	Nickel
Body Material	Brass
Cable Group	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	RP-TNC
Connector Type	Male Pin, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Mating Cycles	Connector Style	Impedance	Cable Group	Connector Type	Shield Termination	Mounting Type	Housing Color	Contact Termination	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Dielectric Material	Body Finish	Body Material	Voltage Rating	Number of Ports	Includes	Center Contact Material
Amphenol RF 122122RP	500	RP-TNC	50 Ohms	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Jack Male Pin	Crimp	Free Hanging (In-Line)	Silver	Crimp	Gold	-65 ░C	165 °C	11 GHz	Polytetrafluoroethylene (PTFE)	Nickel	Brass	500 V	1	1 Connector 1 Contact 1 Ferrule	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RP-TNC Connector Jack, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
