ANM125-M-5A

Active

OptiFuse

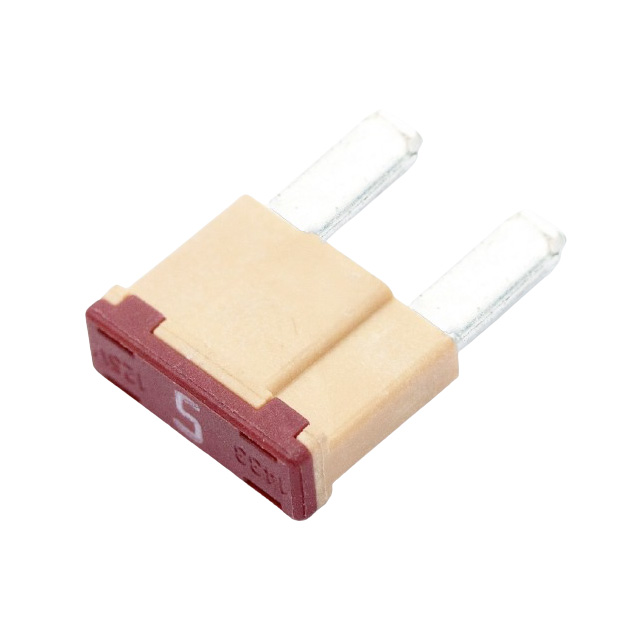

FUSE AUTO 5A 125VDC BLADE MINI

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTO 5A 125VDC BLADE MINI

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 A AC 125 V DC Fuse Automotive Requires Holder Blade, Miniature

Technical documentation and resources

Specification	ANM125-M-5A	ANM125 Series

Breaking Capacity @ Rated Voltage	1 kA	1 kA
Color	Tan	Tan, Blue, Red
Current Rating (Amps)	5 A	5 - 15 A
Fuse Type	Automotive	Automotive
Mounting Type	Requires Holder	Requires Holder
Package / Case	Blade, Miniature	Blade, Miniature
Response Time	Fast Blow	Fast Blow
Size / Dimension [x]	11.8 mm	11.8 mm
Size / Dimension [x]	0.465 in	0.465 in
Size / Dimension [y]	4 mm	4 mm
Size / Dimension [y]	0.157 in	0.157 in
Size / Dimension [z]	0.354 in	0.354 in
Size / Dimension [z]	9 mm	9 mm
Voltage Rating - DC	125 VDC	125 VDC

Part	Mounting Type	Current Rating (Amps)	Fuse Type	Color	Breaking Capacity @ Rated Voltage	Package / Case	Voltage Rating - DC	Response Time	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]
OptiFuse ANM125-M-5A	Requires Holder	5 A	Automotive	Tan	1 kA	Blade, Miniature	125 VDC	Fast Blow	0.354 in	11.8 mm	4 mm	0.157 in	9 mm	0.465 in
OptiFuse ANM125-M-15A	Requires Holder	15 A	Automotive	Blue	1 kA	Blade, Miniature	125 VDC	Fast Blow	0.354 in	11.8 mm	4 mm	0.157 in	9 mm	0.465 in
OptiFuse ANM125-M-10A	Requires Holder	10 A	Automotive	Red	1 kA	Blade, Miniature	125 VDC	Fast Blow	0.354 in	11.8 mm	4 mm	0.157 in	9 mm	0.465 in
