Q-2C05H0005084i

Active

Amphenol Custom Cable

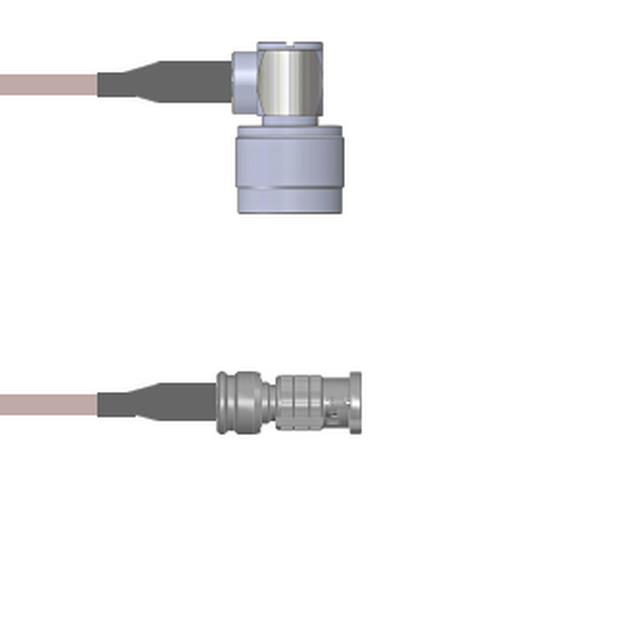

CBL ASSY HDBNC-NTYPE PLUG-PLG 7'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2C05H0005084i

Active

Amphenol Custom Cable

CBL ASSY HDBNC-NTYPE PLUG-PLG 7'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2C05H0005084i

1st Connector	HD-BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	84 in
Length	2.1 m
Length	7 ft
Overall Impedance	50 Ohms
Style	HD-BNC to N-Type

Q-2C05H0 Series

Part	Features	1st Connector	2nd Connector Mounting Type	Frequency - Max [Max]	2nd Connector	Length	Length	Length	Color	1st Contact Gender	Style	1st Connector Mounting Type	Overall Impedance	2nd Contact Gender	Cable Type
Amphenol Custom Cable Q-2C05H0005072i	Shielded	HD-BNC Plug	Free Hanging (In-Line)	6000 MHz	N-Type Plug Right Angle	6 ft	72 in	1.8 m	Copper	Male	HD-BNC to N-Type	Free Hanging (In-Line)	50 Ohms	Male	RG-316
Amphenol Custom Cable Q-2C05H0003003M	Shielded	HD-BNC Plug	Free Hanging (In-Line)	6000 MHz	N-Type Plug Right Angle	9.8 '	118.1 in	3 m	Black	Male	HD-BNC to N-Type	Free Hanging (In-Line)	50 Ohms	Male	RG-174
Amphenol Custom Cable Q-2C05H0005084i	Shielded	HD-BNC Plug	Free Hanging (In-Line)	6000 MHz	N-Type Plug Right Angle	7 ft	84 in	2.1 m	Copper	Male	HD-BNC to N-Type	Free Hanging (In-Line)	50 Ohms	Male	RG-316
Amphenol Custom Cable Q-2C05H00052.5M	Shielded	HD-BNC Plug	Free Hanging (In-Line)	6000 MHz	N-Type Plug Right Angle	8.2 '	98.4 in	2.5 m	Copper	Male	HD-BNC to N-Type	Free Hanging (In-Line)	50 Ohms	Male	RG-316
Amphenol Custom Cable Q-2C05H0003.75M	Shielded	HD-BNC Plug	Free Hanging (In-Line)	6000 MHz	N-Type Plug Right Angle		29.53 "	750 mm	Black	Male	HD-BNC to N-Type	Free Hanging (In-Line)	50 Ohms	Male	RG-174
Amphenol Custom Cable Q-2C05H0003003i	Shielded	HD-BNC Plug	Free Hanging (In-Line)	6000 MHz	N-Type Plug Right Angle		3 in	76.2 mm	Black	Male	HD-BNC to N-Type	Free Hanging (In-Line)	50 Ohms	Male	RG-174
Amphenol Custom Cable Q-2C05H0003012i	Shielded	HD-BNC Plug	Free Hanging (In-Line)	6000 MHz	N-Type Plug Right Angle		12 "	304.8 mm	Black	Male	HD-BNC to N-Type	Free Hanging (In-Line)	50 Ohms	Male	RG-174
Amphenol Custom Cable Q-2C05H0005108i	Shielded	HD-BNC Plug	Free Hanging (In-Line)	6000 MHz	N-Type Plug Right Angle	9 ft	108 in	2.7 m	Copper	Male	HD-BNC to N-Type	Free Hanging (In-Line)	50 Ohms	Male	RG-316
Amphenol Custom Cable Q-2C05H0003009i	Shielded	HD-BNC Plug	Free Hanging (In-Line)	6000 MHz	N-Type Plug Right Angle		9 "	228.6 mm	Black	Male	HD-BNC to N-Type	Free Hanging (In-Line)	50 Ohms	Male	RG-174
Amphenol Custom Cable Q-2C05H0003060i	Shielded	HD-BNC Plug	Free Hanging (In-Line)	6000 MHz	N-Type Plug Right Angle	5 ft	5 '	1.5 m	Black	Male	HD-BNC to N-Type	Free Hanging (In-Line)	50 Ohms	Male	RG-174

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 115.16
		25	$ 112.92
		50	$ 110.69
		100	$ 108.45
		250	$ 106.22

Description

General part information

Q-2C05H0 Series

Cable Assembly Coaxial HD-BNC to N-Type RG-316 84.0" (2.1m) 7.0'

Documents

Technical documentation and resources

No documents available
