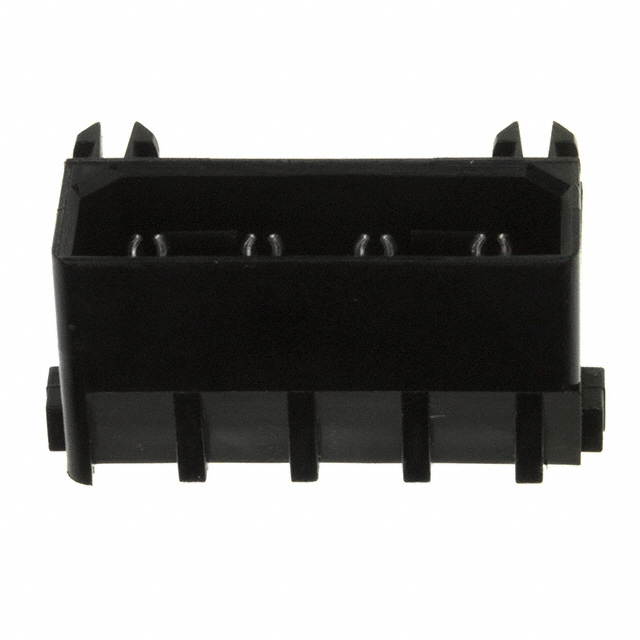

770829-1

Active

TE Connectivity AMP Connectors

CONN HEADER SMD R/A 4POS 2.54MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER SMD R/A 4POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	770829-1

Applications	General Purpose
Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	15 A
Fastening Type	Detent Lock
Features	Board Guide, Board Lock
Insulation Color	Black
Insulation Height	8.38 mm
Insulation Height	0.33 in
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-2
Mounting Type	Surface Mount, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	5.08 mm
Pitch - Mating	0.2 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

CONN HEADER SMD R/A 4POS 2.54MM

Part	Contact Shape	Pitch - Mating	Pitch - Mating	Shrouding	Contact Finish - Post	Fastening Type	Style	Termination	Material Flammability Rating	Number of Rows	Applications	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Insulation Color	Features	Voltage Rating	Number of Positions Loaded	Number of Positions	Insulation Height	Insulation Height	Connector Type	Contact Material	Contact Type	Current Rating (Amps)
TE Connectivity AMP Connectors 770829-1	Circular	5.08 mm	0.2 in	Shrouded - 4 Wall	Tin	Detent Lock	Board to Cable/Wire	Solder	UL94 V-2	1	General Purpose	Surface Mount, Right Angle	105 ░C	-55 °C	Nylon, Polyamide (PA)	Black	Board Guide, Board Lock	250 VAC	All	4	8.38 mm	0.33 in	Header	Copper Alloy	Male Pin	15 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount, Right Angle 4 position 0.200" (5.08mm)
