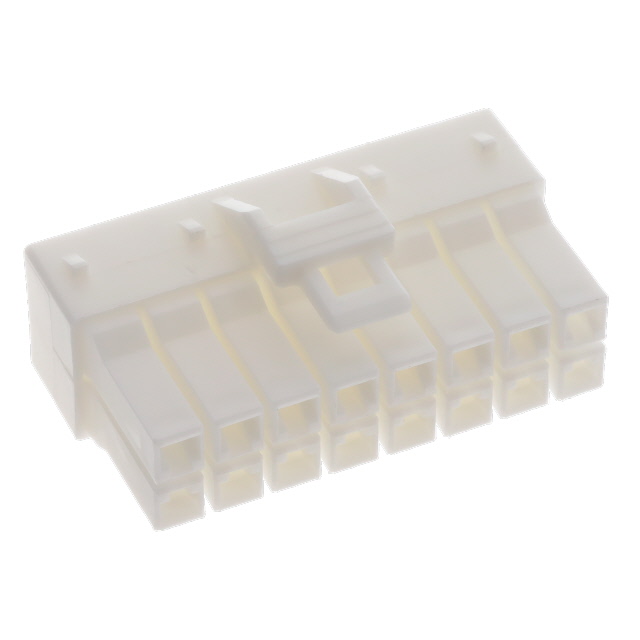

YLP-16V(NN)

Active

JST Sales America Inc.

CONN PLUG HSG 16POS 4.50MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet JST Prefix Suffix Chart

YLP-16V(NN)

Active

JST Sales America Inc.

CONN PLUG HSG 16POS 4.50MM

Deep-Dive with AI

DocumentsDatasheet JST Prefix Suffix Chart

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	YLP-16V(NN)	YLP Series

Color	White	White
Connector Type	Plug	Plug
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Latch Lock	Latch Lock
Insulation Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	16	16
Number of Positions	-	1 - 21
Number of Rows	2	1 - 3
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-25 °C	-25 °C
Pitch [x]	0.177 in	0.177 in
Pitch [x]	4.5 mm	4.5 mm

YLP Series

CONN PLUG HSG 8POS 4.50MM

Part	Color	Contact Termination	Fastening Type	Note	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Connector Type	Pitch [x]	Pitch [x]	Contact Type	Mounting Type	Number of Positions
JST Sales America Inc. YLP-08V	White	Crimp	Latch Lock	Contacts Not Included	Polyamide (PA66), Nylon 6/6	90 °C	-25 °C	2	Plug	0.177 in	4.5 mm	Female Socket	Free Hanging (In-Line)	8
JST Sales America Inc. YLP-15V	White	Crimp	Latch Lock	Contacts Not Included	Polyamide (PA66), Nylon 6/6	90 °C	-25 °C	3	Plug	0.177 in	4.5 mm	Female Socket	Free Hanging (In-Line)	15
JST Sales America Inc. YLP-09V	White	Crimp	Latch Lock	Contacts Not Included	Polyamide (PA66), Nylon 6/6	90 °C	-25 °C	3	Plug	0.177 in	4.5 mm	Female Socket	Free Hanging (In-Line)	9
JST Sales America Inc. YLP-21V	White	Crimp	Latch Lock	Contacts Not Included	Polyamide (PA66), Nylon 6/6	90 °C	-25 °C	3	Plug	0.177 in	4.5 mm	Female Socket	Free Hanging (In-Line)	21
JST Sales America Inc. YLP-02V	White	Crimp	Latch Lock	Contacts Not Included	Polyamide (PA66), Nylon 6/6	90 °C	-25 °C	1	Plug	0.177 in	4.5 mm	Female Socket	Free Hanging (In-Line)	2
JST Sales America Inc. YLP-01V	White	Crimp	Latch Lock	Contacts Not Included	Polyamide (PA66), Nylon 6/6	90 °C	-25 °C	1	Plug			Female Socket	Free Hanging (In-Line)	1
JST Sales America Inc. YLP-06V	White	Crimp	Latch Lock	Contacts Not Included	Polyamide (PA66), Nylon 6/6	90 °C	-25 °C	2	Plug	0.177 in	4.5 mm	Female Socket	Free Hanging (In-Line)	6
JST Sales America Inc. YLP-12V	White	Crimp	Latch Lock	Contacts Not Included	Polyamide (PA66), Nylon 6/6	90 °C	-25 °C	3	Plug	0.177 in	4.5 mm	Female Socket	Free Hanging (In-Line)	12
JST Sales America Inc. YLP-03V	White	Crimp	Latch Lock	Contacts Not Included	Polyamide (PA66), Nylon 6/6	90 °C	-25 °C	1	Plug	0.177 in	4.5 mm	Female Socket	Free Hanging (In-Line)
JST Sales America Inc. YLP-12VA	White	Crimp	Latch Lock	Contacts Not Included	Polyamide (PA66), Nylon 6/6	90 °C	-25 °C	2	Plug	0.177 in	4.5 mm	Female Socket	Free Hanging (In-Line)	12

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.72
		10	$ 0.63
		200	$ 0.52
		1000	$ 0.37
		5000	$ 0.33
		10000	$ 0.30

Description

General part information

YLP Series

16 Rectangular Connectors - Housings Plug White 0.177" (4.50mm)

Documents

Technical documentation and resources

Datasheet

JST Prefix Suffix Chart

Datasheet
