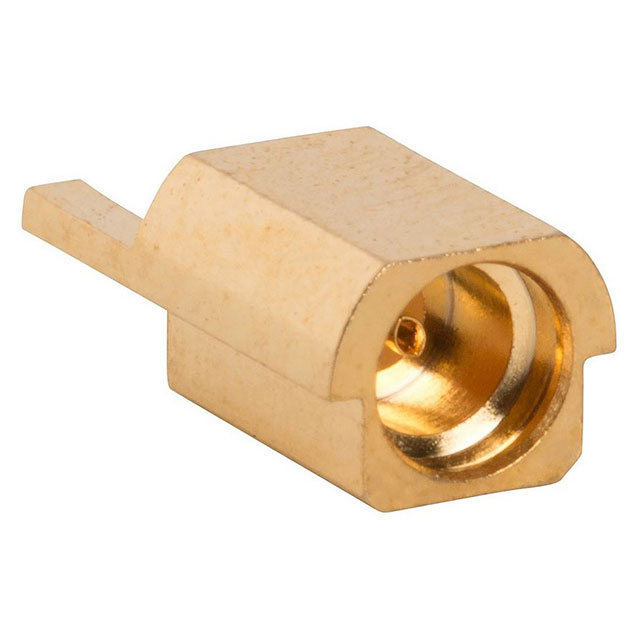

262107-10

Active

Amphenol RF

CONN MMCX JACK STR 50OHM EDGEMNT

Search across all available documentation for this part.

Active

Amphenol RF

CONN MMCX JACK STR 50OHM EDGEMNT

Technical Specifications

Parameters and characteristics for this part

Specification	262107-10

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MMCX
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Cutout, Board Edge, Surface Mount
Number of Ports	1
Shield Termination	Solder

Part	Center Contact Material	Mating Cycles	Connector Type	Housing Color	Impedance	Connector Style	Dielectric Material	Body Finish	Frequency - Max [Max]	Mounting Type	Fastening Type	Body Material	Center Contact Plating	Contact Termination	Shield Termination	Number of Ports
Amphenol RF 262107-10	Beryllium Copper	500	Female Socket Jack	Gold	50 Ohms	MMCX	Polytetrafluoroethylene (PTFE)	Gold	6000 MHz	Board Edge Cutout Surface Mount	Snap-On	Brass	Gold	Solder	Solder	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 6.02

General part information

MMCX Connector Jack, Female Socket 50 Ohms Board Edge, Cutout; Surface Mount Solder

Technical documentation and resources

No documents available
