M80-5D10605MB-02-337-00-000

Active

Harwin Inc.

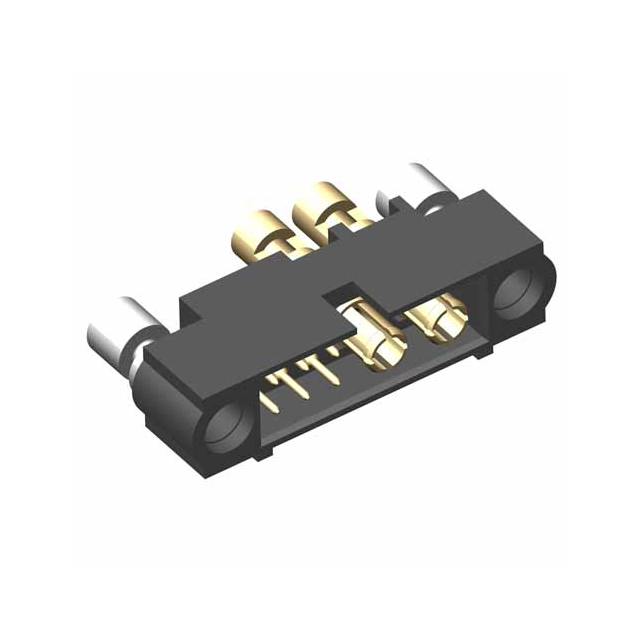

6+2 POS. MALE 22AWG+16AWG CABLE CONN. KIT, REVERSE FIX ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

6+2 POS. MALE 22AWG+16AWG CABLE CONN. KIT, REVERSE FIX ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Color	Contact Finish	Features	Pitch [x]	Pitch [x]	Connector Type	Row Spacing	Row Spacing	Wire Gauge	Number of Rows	Contact Type	Cable Termination	Wire Type	Number of Positions	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Mounting Type
Harwin Inc. M80-5D11005M2	Black	Gold	Jackscrews Polarizing Key	0.079 in	2 mm	Header	2 mm	0.079 in	22 AWG	2	Male Pin	Crimp	Discrete	10
Harwin Inc. M80-5D10805MC	Black	Gold	Jackscrews	0.079 in	2 mm	Header	2 mm	0.079 in	22 AWG	2	Male Pin	Crimp	Discrete		16	10 Áin	0.25 Ám
Harwin Inc. M80-5D10605MB-02-337-00-000	Black	Gold	Jackscrews			Header			22 AWG	2	Male Pin	Crimp	Discrete			10 Áin	0.25 Ám	8	6	2	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 (6 + 2 Power) Position Rectangular Header Connector Crimp Gold 22 AWG
