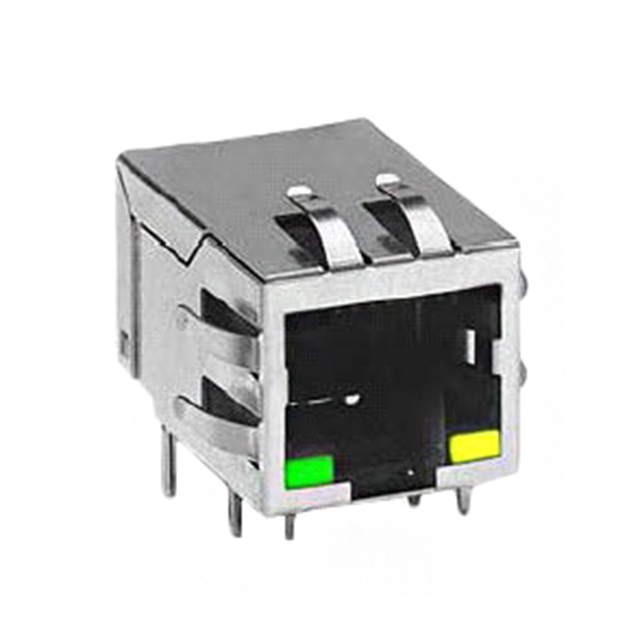

J1B1211CCD

Active

WIZnet

CONN JACK 1PORT 100 BASE-T PCB

Search across all available documentation for this part.

Active

WIZnet

CONN JACK 1PORT 100 BASE-T PCB

Technical Specifications

Parameters and characteristics for this part

CONN JACK 1PORT 100 BASE-T PCB

Part	Features	Contact Material	Mounting Type	Contact Finish	Shield Material	Housing Material	Applications	Connector Type	Number of Rows	Termination	Contact Finish Thickness	Contact Finish Thickness	Shielding	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	LED Color	Tab Direction	Number of Ports	Height Above Board	Height Above Board
WIZnet J1B1211CCD	Board Guide	Phosphor Brass	Through Hole	Gold	Brass	Thermoplastic	10/100 Base-T, AutoMDIX	RJ45	1	Solder	0.152 Ám	6 Áin	Shielded, EMI Finger	90 °	85 °C	-40 °C	Green, Yellow	Down	1	0.526 in	13.36 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 Port RJ45Through Hole 10/100 Base-T, AutoMDIX
