MWA180048A-11A

Active

Inventus Power

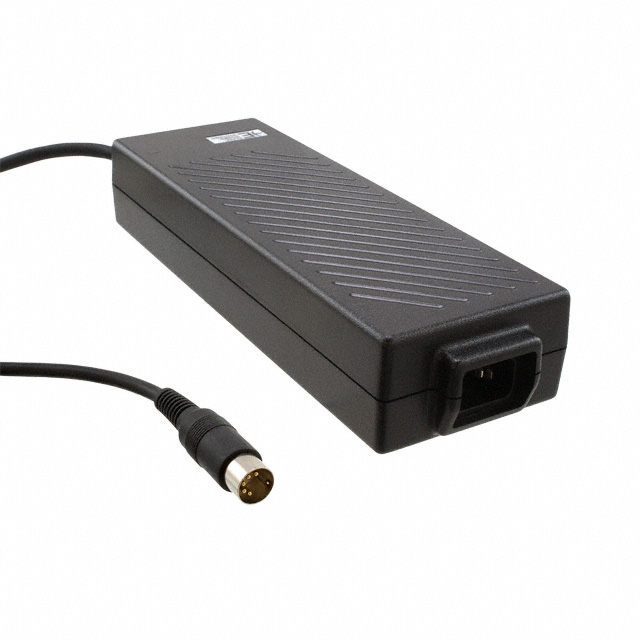

AC/DC DESKTOP ADAPTER 48V 180W

Search across all available documentation for this part.

Active

Inventus Power

AC/DC DESKTOP ADAPTER 48V 180W

Technical Specifications

Parameters and characteristics for this part

AC/DC DESKTOP ADAPTER 48V 180W

Part	Output Connector	Output Connector	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Input Connector	No Load Power Consumption	Applications	Voltage - Output	Cord Length	Cord Length	Power (Watts)	Efficiency	Input Type	Operating Temperature [Max]	Operating Temperature [Min]	Weight	Weight	Region Utilized	Form	Current - Output (Max) [Max]	Approval Agency
Inventus Power MWA180048A-11A	DIN	5 Pin	8.2 "	73 mm	208 mm	2.9 in	1.6 "	39 mm	IEC 320-C14	500 mW	Medical	48 V	1.83 m	72 in	180 W	Level V	Cord	60 °C	0 °C	952.5 g	2.1 lb	International	Desktop (Class I)	3.75 A	CB, CE, cTUVus

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	240	$ 89.38

General part information

48V 180 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input

Technical documentation and resources
