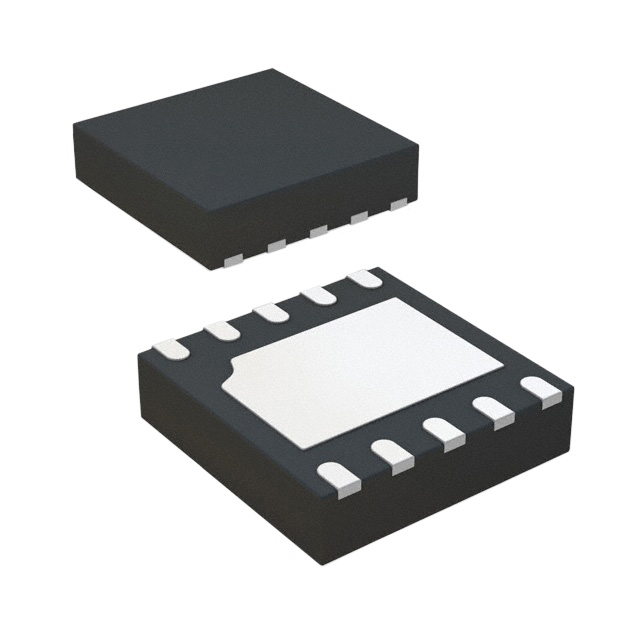

IR3624MTRPBF
ObsoleteInfineon Technologies
IC REG CTRLR BUCK 10-MLPD
Deep-Dive with AI
Search across all available documentation for this part.
IR3624MTRPBF
ObsoleteInfineon Technologies
IC REG CTRLR BUCK 10-MLPD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IR3624MTRPBF |
|---|---|
| Clock Sync | False |
| Control Features | Current Limit, Soft Start |
| Duty Cycle (Max) [Max] | 71 % |
| Frequency - Switching | 600 kHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Phases | 1 |
| Output Type | Transistor Driver |
| Package / Case | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-MLPD (3x3) |
| Synchronous Rectifier | True |
| Topology | Buck |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
IR3624 Series
Buck Regulator Positive Output Step-Down DC-DC Controller IC 10-MLPD (3x3)
Documents
Technical documentation and resources
No documents available
