IXYX110N120A4

Active

IXYS

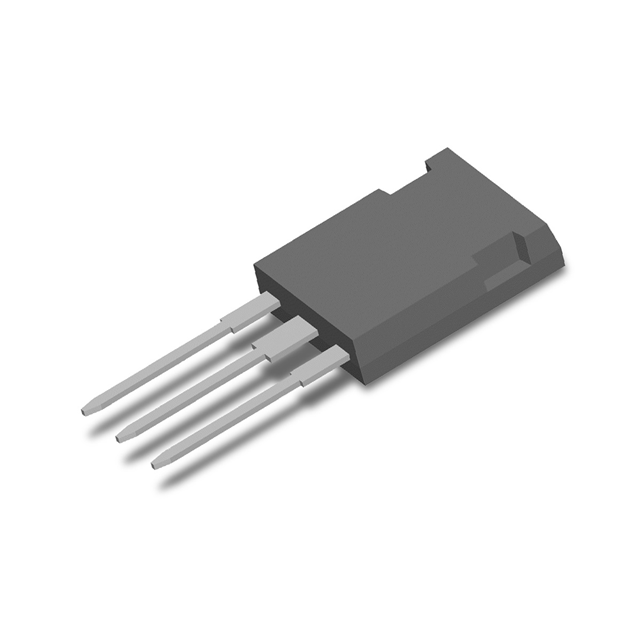

IGBT 1200V 110A GNX4 XPT PLUS247

Search across all available documentation for this part.

Active

IXYS

IGBT 1200V 110A GNX4 XPT PLUS247

Technical Specifications

Parameters and characteristics for this part

Specification	IXYX110N120A4

Current - Collector (Ic) (Max) [Max]	375 A
Current - Collector Pulsed (Icm)	900 A
Gate Charge	305 nC
IGBT Type	PT
Mounting Type	Through Hole
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	TO-247-3
Power - Max [Max]	1360 W
Supplier Device Package	TO-247 (IXTH)
Switching Energy	2500 µJ, 8.4 mJ
Td (on/off) @ 25°C	550 ns
Td (on/off) @ 25°C	42 ns
Test Condition	1.5 Ohm, 50 A, 600 V, 15 V
Vce(on) (Max) @ Vge, Ic	1.8 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

Part	Mounting Type	Td (on/off) @ 25°C	Td (on/off) @ 25°C	Switching Energy	Gate Charge	Current - Collector Pulsed (Icm)	Test Condition	Power - Max [Max]	IGBT Type	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Supplier Device Package	Vce(on) (Max) @ Vge, Ic	Current - Collector (Ic) (Max) [Max]
IXYS IXYX110N120A4	Through Hole	550 ns	42 ns	8.4 mJ 2500 µJ	305 nC	900 A	1.5 Ohm 15 V 50 A 600 V	1360 W	PT	TO-247-3	-55 °C	175 ░C	1200 V	TO-247 (IXTH)	1.8 V	375 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	300	$ 18.10

General part information

IGBT PT 1200 V 375 A 1360 W Through Hole TO-247 (IXTH)
