SF2960-6025

Active

Amphenol SV Microwave

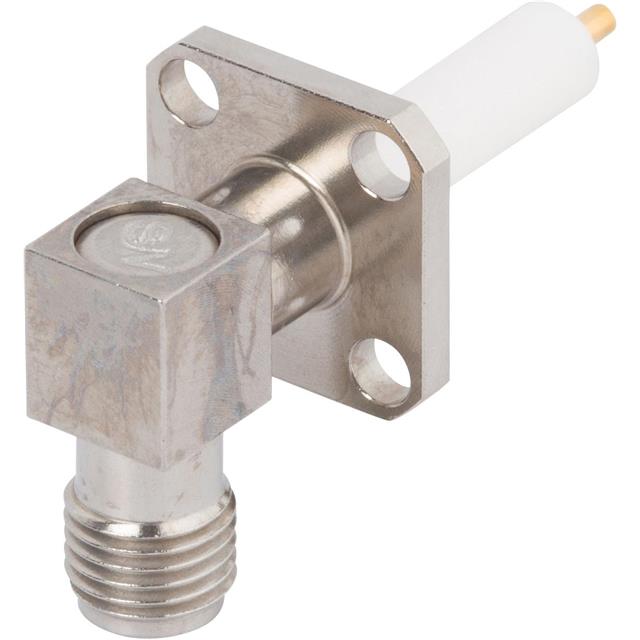

SMA FEMALE FLANGE MOUNT CONNECTOR, 4 HOLE, R/A (CANDLESTICK) /INDIVIDUAL - TRAY (PACK FILL QTY: 50)

Search across all available documentation for this part.

Active

Amphenol SV Microwave

SMA FEMALE FLANGE MOUNT CONNECTOR, 4 HOLE, R/A (CANDLESTICK) /INDIVIDUAL - TRAY (PACK FILL QTY: 50)

Technical Specifications

Parameters and characteristics for this part

Specification	SF2960-6025

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Extended Insulation
Frequency - Max [Max]	12.4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Mounting Type	Right Angle, Panel Mount
Number of Ports	1
Shield Termination	Solder

Part	Connector Type	Number of Ports	Mounting Type	Center Contact Plating	Housing Color	Contact Termination	Mating Cycles	Shield Termination	Mounting Feature	Impedance	Frequency - Max [Max]	Dielectric Material	Center Contact Material	Connector Style	Body Material	Features
Amphenol SV Microwave SF2960-6001	Female Socket Jack	1	Panel Mount Right Angle	Gold	Silver	Solder Cup	500	Solder	Flange	50 Ohms	12.4 GHz	Polytetrafluoroethylene (PTFE)	Beryllium Copper	SMA	Stainless Steel
Amphenol SV Microwave SF2960-6025	Female Socket Receptacle	1	Panel Mount Right Angle	Gold	Silver	Solder	500	Solder	Flange	50 Ohms	12.4 GHz	Polytetrafluoroethylene (PTFE)	Beryllium Copper	SMA	Stainless Steel	Extended Insulation

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Receptacle, Female Socket 50 Ohms Panel Mount, Right Angle Solder
